Cub Cadet 107

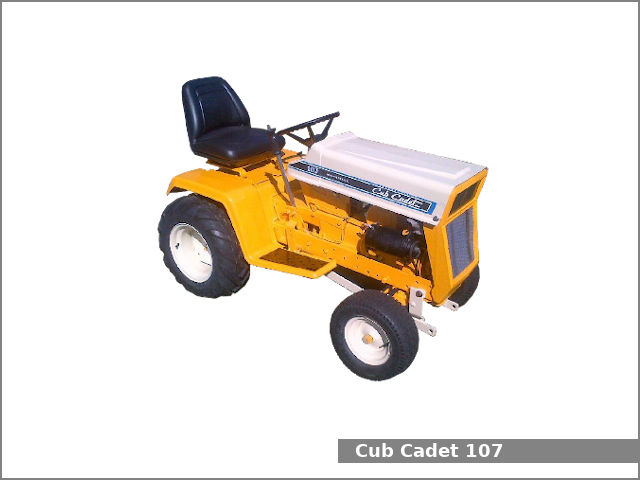

Cub Cadet 107The Cub Cadet 107 is a 2WD garden tractor from the 1X6/1X7 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1969 to 1971. The Cub Cadet 107 is equipped with a 0.4 L (23.9 cu·in) single-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 107 garden tractor used the Kohler K241AS engine. It is a 0.4 L, 391 cm2, (23.9 cu·in) single-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. The compression ratio rating is 7.0:1. This engine produced 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm of output power.

The Cub Cadet 107 is equipped with manual steering, mechanical disc brakes, an open operator station, and 6.2 liters (1.6 US gal.; 1.4 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 107 garden tractor:

  • Mid-mount Cub Cadet: 960 mm (38 in) mower deck with 3-blades and manual or electric (optional) lift
  • Mid-mount Cub Cadet: 1,060 mm (42 in) mower deck with 3-blades and manual or electric (optional) lift
  • Mid-mount Cub Cadet: 1,210 mm (48 in) mower deck with 3-blades and manual or electric (optional) lift
  • Front-mount Cub Cadet 1,060 mm (42 in) blade with manual lift
  • Front-mount Cub Cadet QA-36 910 mm (36 in) snow blower with manual lift
  • Front-mount Cub Cadet QA-42 1,060 mm (42 in) snow blower with manual lift

Cub Cadet 107 Specifications

General Specifications
Model Cub Cadet 107
Length 1,620 mm (63.8 in)
Width 840 mm (33.1 in)
Height (steering wheel) 1,000 mm (39.4 in)
Wheel base 1,090 mm (42.9 in)
Ground clearance 150 mm (5.9 in)
Weight (shipping) 285 kg (628 lbs)
Fuel tank capacity 6.2 liters (1.6 US gal.; 1.4 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K241AS
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 391 cm2, (23.9 cu·in)
Bore and stroke 83.0 mm X 73.0 mm (3.27 in X 2.87 in)
Compression ratio 7.0:1
Horsepower 10.2 PS (7.5 kW; 10.0 HP) at 3,600 rpm
Torque 22.0 N·m (2.2 kg·m, 16.2 ft·lb) at 2,200 rpm
Starter Electric
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug Champion H-10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8.0 mph) Reverse: 6.4 kmh (4.0 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tires Lawn/turf: 4.80/4.00-8
Rear tires Lawn/turf: 6-12
Three-Point Hitch
Category Cub Cadet three-point (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type With mechanical dry disc
Front PTO speed 3,600 rpm
