Cub Cadet 109

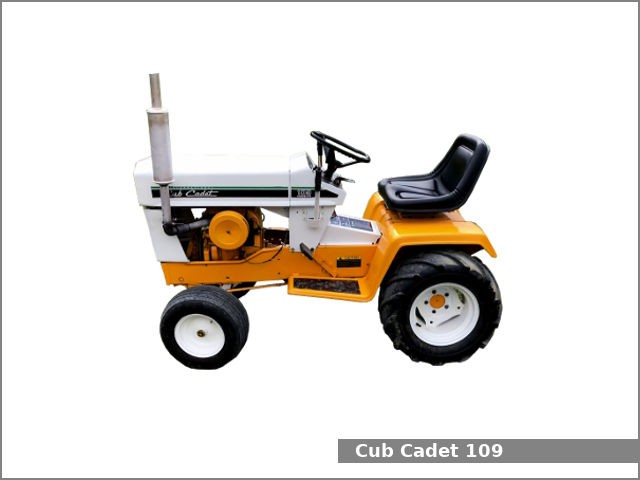

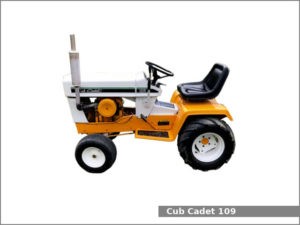

Cub Cadet 109The Cub Cadet 109 is a 2WD garden tractor from the 1X8/1X9 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1971 to 1974. The Cub Cadet 109 is equipped with a 0.4 L single-cylinder gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 109 garden tractor used the Kohler K241A engine. It is a 0.4 L, 391 cm2, (23.9 cu·in) single-cylinder natural aspirated gasoline engine with 82.6 mm (3.25 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 10.2 PS (7.5 kW; 10.1 HP) at 3,600 rpm of maximum output power.

The Cub Cadet 109 is equipped with manual steering, dry disc brakes, open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 109 garden tractor:

  • Mid-mount Cub Cadet 38 in (960 mm) mower deck with 3-blades
  • Mid-mount Cub Cadet 44 in (1,110 mm) mower deck with 3-blades
  • Mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades

Cub Cadet 109 Specifications

General Specifications
Model Cub Cadet 109
Length 1,750 mm (68.9 in)
Width 830 mm (32.7 in)
Height 1040 mm (40.9 in)
Wheel base 1,110 mm (43.7 in)
Weight
Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K241A
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.4 L, 391 cm2, (23.9 cu·in)
Bore and stroke 82.6 mm X 73.0 mm (3.25 in X 2.87 in)
Horsepower 10.2 PS (7.5 kW; 10.1 HP) at 3,600 rpm
Starter Electric
Oil type SAE 5W-20, 10W, 30
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug Champion H10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tires Lawn/turf: 4.80×4.00-8
Rear tires Lawn/turf: 6-12
Three-Point Hitch
Caterogy Sleeve hitch (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with mechanical clutch
Front PTO spped
