Cub Cadet 122

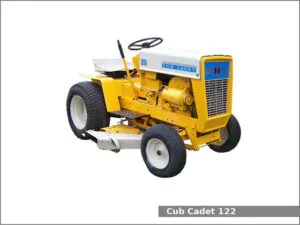

Cub Cadet 122The Cub Cadet 122 is a 2WD garden tractor from the 1X2/1X3 series. This tractor was manufactured by the Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1965 to 1967. The Cub Cadet 122 is equipped with a 0.5 L single-cylinder gasoline engine and one of two transmissions: shaft-driven gear type transmission with 3 forward and 1 reverse gear or creeper transmission with 6 forward and 2 reverse gears.

The Cub Cadet 122 garden tractor used the Kohler K301AS engine. It is a 0.5 L, 476 cm2, (29.0 cu·in) single-cylinder natural aspirated gasoline engine with 85.7 mm (3.37 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet 122 is equipped with manual steering, dry disc brakes, open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Following attachments are available for Cub Cadet 122 garden tractor:

  • Mid-mount Cub Cadet 38 in (960 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 42 in (1,060 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 48 in (1,210 mm) mower deck with 3-blades and manual lift
  • Font-mount Cub Cadet 42 in (1,060 mm) blade
  • Font-mount Cub Cadet 36 in (910 mm) snow blower

Cub Cadet 122 Specifications

General Specifications
ModelCub Cadet 122
Length1,600 mm (63 in)
Width840 mm (33.1 in)
Height1,010 mm (39.8 in)
Wheel base1,090 mm (42.9 in)
Weight362 kg (798 lbs)
Fuel tank capacity7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelKohler K301AS
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 476 cm2, (29.05 cu·in)
Bore and stroke85.7 mm X 82.6 mm (3.37 in X 3.25 in)
Compression ratio 6.0:1
Horsepower12.1 PS (8.9 kW; 11.9 HP) at 3,600 rpm
StarterElectric
Oil typeSAE 10W-30; API SF or SG
Spark plugChampion: RH10
Intake valve clearance0.20-0.25 mm (0.0079-0.0098 in)
Exhaust valve clearance0.43-0.48 mm (0.0169-0.0189 in)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesDry disc
Transmission model
Transmission typeShaft-driven gear type with dry disc clutch
Gears3 forward and 1 reverse
Speed Forward: 11.0 kmh (6.8 mph) Reverse: 4.0 (2.5 mph)
Transmission model
Transmission typeCreeper
Gears6 forward and 2 reverse
Speed Forward: 2.7 kmh (1.7 mph) Reverse: 1.0 (0.6 mph)
Tires
Front tiresLawn/turf: 4.80×4.00-8, 16×6.50-8
Rear tiresLawn/turf: 23×8.50-12
PTO (Power take-off shaft)
Front PTO typeIndependent
Front PTO spped
Rear PTO typeTransmission
Rear PTO spped
