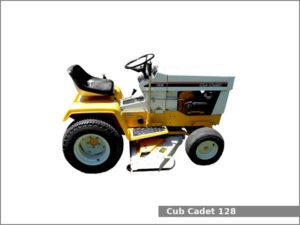

Cub Cadet 128The Cub Cadet 128 is a 2WD garden tractor from the 1X8/1X9 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1971 to 1974. The Cub Cadet 128 is equipped with a 0.5 L single-cylinder gasoline engine and gear type transmission with dry disc clutch and 3 forward and 1 reverse gear or creeper with 6 forward and 2 reverse gear.

The Cub Cadet 128 garden tractor used the Kohler K301A engine. It is a 0.5 L, 476 cm2, (29 cu·in) single-cylinder natural aspirated gasoline engine with 85.7 mm (3.37 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. This engine produced 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm of output power.

The Cub Cadet 128 is equipped with manual steering, mechanical disc brakes, open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 128 garden tractor:

  • Mid-mount Cub Cadet 38 in (960 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 44 in (1,110 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades and manual lift

Cub Cadet 128 Specifications

General Specifications
Model Cub Cadet 128
Length 1,750 mm (68.9 in)
Width 910 mm (35.8 in)
Height 1,040 mm (40.9 in)
Wheel base 1,110 mm (43.7 in)
Weight
Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K301A
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 476 cm2, (29 cu·in)
Bore and stroke 85.7 mm X 82.6 mm (3.37 in X 3.25 in)
Compression ratio 6.0:1
Horsepower 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm
Starter Electric
Oil type SAE 10W-30; API SF or SG
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug Champion RH10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes mechanical disc
Transmission model
Transmission type Gear type with dry disc clutch
Gears 3 forward and 1 reverse
Speed Forward: 10.9 kmh (6.8 mph) Reverse: 4.0 (2.5 mph)
Transmission oil capacity 3.3 L (0.9 US. gal, 0.7 Imp. gal.)
Transmission model
Transmission type Creeper
Gears 6 forward and 2 reverse
Speed Forward: 10.9 kmh (6.8 mph) Reverse: 4.0 (2.5 mph)
Transmission oil capacity 3.8 L (1 US. gal, 0.8 Imp. gal.)
Tires
Front tires Lawn/turf: 4.80×4.00-8
Rear tires Lawn/turf: 23×8.50-12
Three-Point Hitch
Caterogy Sleeve hitch (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Optional
Front PTO spped
Rear PTO type Transmission (optional)
Rear PTO spped 515 rpm
