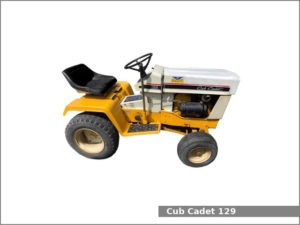

Cub Cadet 129

Cub Cadet 129The Cub Cadet 129 is a 2WD garden tractor from the 1X8/1X9 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1971 to 1974. The Cub Cadet 129 is equipped with a 0.5 L single-cylinder gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 129 garden tractor used the Kohler K301A engine. It is a 0.5 L, 476 cm2, (29.0 cu·in) single-cylinder natural aspirated gasoline engine with 85.7 mm (3.37 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet 129 is equipped with manual steering, mechanical disc brakes, open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 129 garden tractor:

  • Mid-mount Cub Cadet 38 in (960 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 44 in (1,110 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades and manual lift

Cub Cadet 129 Specifications

General Specifications
ModelCub Cadet 129
Length1,750 mm (68.9 in)
Width910 mm (35.8 in)
Height1,040 mm (40.9 in)
Wheel base1,110 mm (43.7 in)
Weight295 kg (650 lbs)
Fuel tank capacity7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelKohler K301A
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.5 L, 476 cm2, (29 cu·in)
Bore and stroke85.7 mm X 82.6 mm (3.37 in X 3.25 in)
Compression ratio6.0:1
Horsepower12.1 PS (8.9 kW; 12.0 HP) at 3,600 rpm
StarterElectric
Oil typeSAE 10W-30; API SF or SG
Oil capacity:1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plugChampion RH10
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesMechanical disc
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tiresLawn/turf: 4.80×4.00-8
Rear tiresLawn/turf: 23×8.50-12
Three-Point Hitch
CaterogySleeve hitch (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO typeIndependent with mechanical clutch
Front PTO spped
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
