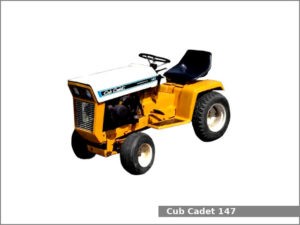

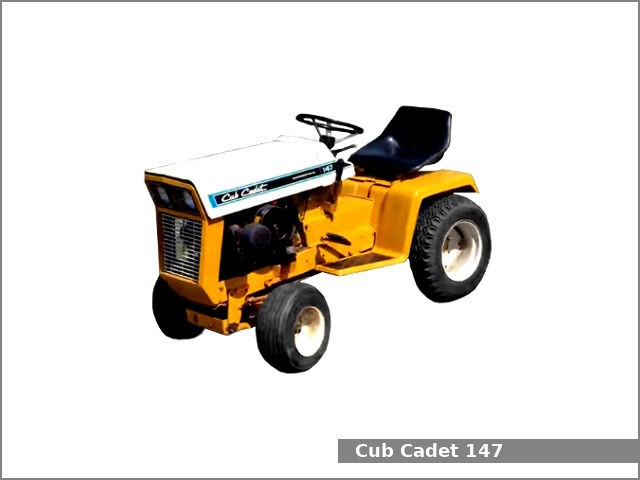

Cub Cadet 147

Cub Cadet 147The Cub Cadet 147 is a 2WD garden tractor from the 1X6/1X7 series. This tractor was manufactured by Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1969 to 1971. The Cub Cadet 147 is equipped with a 0.5 L single-cylinder gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 147 garden tractor used the Kohler K321A engine. It is a 0.5 L, 512 cm2, (31.2 cu·in) single-cylinder natural aspirated gasoline engine with 89.0 mm (3.5 in) of the cylinder bore and 82.6 mm (3.25 in) of the piston stroke. The compression ratio rating is 6.0:1. This engine produced 14.1 PS (10.4 kW; 14.0 HP) at 3,600 rpm of output power and 31.9 N·m (3.3 kg·m, 23.5 ft·lb) of torque.

The Cub Cadet 147 is equipped with manual steering, disc type brakes, open operator station and 7.6 liters (2 US gal.; 1.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 147 garden tractor:

  • Mid-mount Cub Cadet 38 in (960 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 44 in (1,110 mm) mower deck with 3-blades and manual lift
  • Mid-mount Cub Cadet 50 in (1,270 mm) mower deck with 3-blades and manual lift

Cub Cadet 147 Specifications

General Specifications
Model Cub Cadet 147
Length 1,620 mm (63.8 in)
Width 830 mm (32.7 in)
Height 1,000 mm (39.4 in)
Wheel base 1,090 mm (42.9 in)
Weight 335 kg (738 lbs)
Fuel tank capacity 7.6 liters (2 US gal.; 1.7 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K321A
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.5 L, 512 cm2, (31.2 cu·in)
Bore and stroke 89.0 mm X 82.6 mm (3.5 in X 3.25 in)
Compression ratio 6.0:1
Horsepower 14.1 PS (10.4 kW; 13.9 HP) at 3,600 rpm
Torque 31.9 N·m (3.3 kg·m, 23.5 ft·lb) at rpm
Starter Electric
Oil type SAE 10W-30; API SF or SG
Oil capacity: 1.4 L (1.5 US. qt, 1.2 Imp. qt.)
Spark plug Champion RH10
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Disc type
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity 6.6 L (1.7 US. gal, 1.5 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.50-8
Rear tires Lawn/turf: 23×8.50-12
Three-Point Hitch
Caterogy Cub Cadet three-point (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type
Front PTO spped 3,600 rpm
