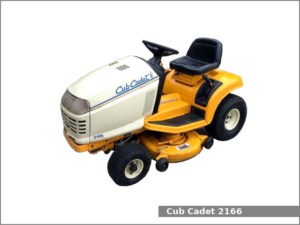

Cub Cadet 2166

Cub Cadet 2166The Cub Cadet 2166 is a 2WD lawn tractor from the 2000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2000 to 2003. The Cub Cadet 2166 is equipped with a 0.4 L single-cylinder gasoline engine and shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 2166 lawn tractor used the Kohler Command PRO engine. It is a 0.4 L, 426 cm2, (26.0 cu·in) single-cylinder natural aspirated gasoline engine with 90.0 mm (3.54 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet 2166 is equipped with manual steering, internal expanding brakes, open operator station, 7.9 liters (2.1 US gal.; 1.7 Imp. gal) fuel tank and mid-mount 42 in (1,060 mm) mower deck.

Cub Cadet 2166 Specifications

General Specifications
ModelCub Cadet 2166
Length1,820 mm (71.7 in)
Width1,295 mm (51 in)
Height1,060 mm (41.7 in)
Wheel base1,190 mm (46.9 in)
Weight335 kg (738 lbs)
Fuel tank capacity7.9 liters (2.1 US gal.; 1.7 Imp. gal)
Battery12V
Cabin typeOpen operator station
Engine
Engine modelKohler Command
Engine typeFour-stroke, air-cooled, inline
Cylinders1
Fuel typeGasoline
Displacement0.4 L, 426 cm2, (26.0 cu·in)
Bore and stroke90.0 mm X 67.0 mm (3.54 in X 2.64 in)
Compression ratio 8.5:1
Horsepower16.2 PS (11.9 kW; 16.0 HP) at 3,600 rpm
Torque25.3 N·m (2.6 kg·m, 18.6 ft·lb) at 2,400 rpm
StarterElectric
Oil typeSAE 10W-30, API: SG, SH, SJ
Oil capacity:1.9 L (2.01 US. qt, 1.67 Imp. qt.)
Spark plugChampion RC12YC
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesInternal expanding
Transmission model
Transmission typeShaft-driven hydrostatic
GearsInfinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 4.8 (3 mph)
Transmission oil capacity5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Tires
Front tiresLawn/turf: 15×6-6
Rear tiresLawn/turf: 20×9-8
PTO (Power take-off shaft)
Front PTO typeIndependent with electric clutch
Front PTO spped
