Cub Cadet 2182

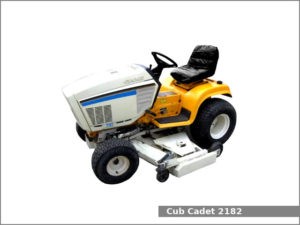

Cub Cadet 2182The Cub Cadet 2182 is a 2WD lawn and garden tractor manufactured by Cub Cadet (a part of MTD) from 1990 to 1995. The Cub Cadet 2182 is equipped with a 0.6 L (36.6 cu·in) three-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 2182 garden tractor used the Kubota engine. It is a 0.6 L, 600 cm2, (36.6 cu·in) three-cylinder natural aspirated gasoline engine with 64.0 mm (2.52 in) of the cylinder bore and 62.0 mm (2.44 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) of output power.

The Cub Cadet 2182 is equipped with power steering, disc brakes, open operator station and 18.9 liters (5.0 US gal.; 4.2 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 2182 garden tractor:

  • Mid-mount Cub Cadet 46 in (1,160 mm) mower deck hydraulic lift
  • Mid-mount Cub Cadet 190-359 50 in (1,270 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount Cub Cadet 190-324 54 in (1,370 mm) mower deck with 3-blades and hydraulic lift
  • Mid-mount Cub Cadet 60 in (1,520 mm) mower deck with 3-blades and hydraulic lift

Cub Cadet 2182 Specifications

General Specifications
Model Cub Cadet 2182
Length 1,990 mm (78.3 in)
Width 1,100 mm (43.3 in)
Height 1,200 mm (47.2 in)
Wheel base 1,310 mm (51.6 in)
Ground clearance 190 mm (7.5 in)
Weight 516 kg (1,138 lbs)
Fuel tank capacity 18.9 liters (5 US gal.; 4.2 Imp. gal)
Battery 12V, CCA 440A
Cabin type Open operator station
Engine
Engine model Kubota
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Gasoline
Displacement 0.6 L, 600 cm2, (36.6 cu·in)
Bore and stroke 64.0 mm X 62.0 mm (2.52 in X 2.44 in)
Horsepower 21.4 PS (15.7 kW; 21.1 HP) at rpm
Starter Electric
Oil capacity: 2.9 L (3.1 US. qt, 2.6 Imp. qt.)
Coolant capacity: 3.8 L (4 US. qt, 3.3 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Disc
Transmission model Sundstrand
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.1 kmh (7.5 mph) Reverse: 6.4 (4.0 mph)
Tires
Front tires Lawn/turf: 18×8.5-8
Rear tires Lawn/turf: 26×12-12
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
