Cub Cadet 3204

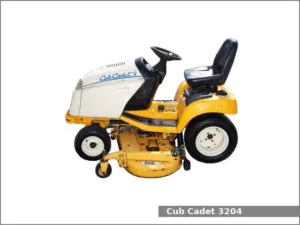

Cub Cadet 3204The Cub Cadet 3204 is a 2WD garden tractor from the 3000 series. This tractor was manufactured by Cub Cadet (a part of MTD) in from 2001 to 2003. The Cub Cadet 3204 is equipped with a 0.7 L (41.1 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet 3204 garden tractor used the Kohler Command engine. It is a 0.7 L, 674 cm2, (41.1 cu·in) two-cylinder natural aspirated gasoline engine with 80.0 mm (3.15 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm of output power.

The Cub Cadet 3204 is equipped with power steering, external disc brakes, an open operator station, and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet 3204 garden tractor:

  • Mid-mount Cub Cadet 1,110 mm (44 in) mower deck with hydraulic lift
  • Mid-mount Cub Cadet 1,210 mm (48 in) mower deck with hydraulic lift
  • Front-mount Cub Cadet 190-352 1,370 mm (54 in) blade
  • Front-mount Cub Cadet 190-353 1,140 mm (45 in) two-stage snowblower

Cub Cadet 3204 Specifications

General Specifications
Model Cub Cadet 3204
Length 1,870 mm (73.6 in)
Width 1,060 mm (41.7 in)
Height 1,100 mm (43.3 in)
Wheel base 1,250 mm (49.2 in)
Ground clearance 150 mm (5.9 in)
Weight 360 kg (794 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V, CCA 435A
Cabin type Open operator station
Engine
Engine model Kohler Command
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 674 cm2, (41.1 cu·in)
Bore and stroke 80.0 mm X 67.0 mm (3.15 in X 2.64 in)
Compression ratio 8.5:1
Horsepower 20.3 PS (14.9 kW; 20.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes External disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph)
Transmission oil capacity 5.7 L (1.5 US. gal, 1.3 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 23×9.5-12
Rear Hitch
Category 0 (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
