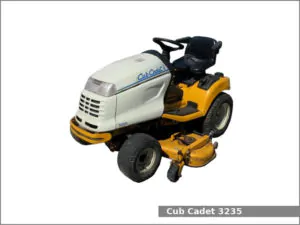

The Cub Cadet 3235 is a 2WD garden tractor from the 3000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2001 to 2003. The Cub Cadet 3235 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.
The Cub Cadet 3235 garden tractor used the Kohler Command CH23 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 23.4 PS (17.2 kW; 23.0 HP) of output power.
The Cub Cadet 3235 is equipped with power steering, open operator station, and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.
Following attachments are available for the Cub Cadet 3235 garden tractor:
- Mid-mount Cub Cadet 190-209: 1,110 mm (44 in) mower deck with 3-blades and hydraulic lift
- Mid-mount Cub Cadet 190-289: 1,210 mm (48 in) mower deck with 3-blades and hydraulic lift
- Mid-mount Cub Cadet 190-290: 1,370 mm (54 in) mower deck with 3-blades and hydraulic lift
- Mid-mount Cub Cadet 190-291: 1,520 mm (60 in) mower deck with 3-blades and hydraulic lift
- Front-mount Cub Cadet 190-352: 1,370 mm (54 in) blade
- Front-mount Cub Cadet 190-353: 1,140 mm (45 in) two-stage snowblower
Cub Cadet 3235 Specifications
| General Specifications | |
| Model | Cub Cadet 3235 |
| Length | 1,835 mm (72.2 in) |
| Width | 1,067 mm (42 in) |
| Height | 1,107 mm (43.6 in) |
| Wheel base | 1,257 mm (49.5 in) |
| Ground clearance | 152 mm (6.0 in) |
| Weight | 364 kg (802 lbs) |
| Fuel tank capacity | 17.0 liters (4.5 US gal.; 3.7 Imp. gal) |
| Battery | 12V, CCA 435A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Kohler Command CH23 |
| Engine type | Four-stroke, air-cooled, V |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 724 cm2, (44.2 cu·in) |
| Bore and stroke | 83.0 mm X 67.0 mm (3.27 in X 2.64 in) |
| Compression ratio | 9.0:1 |
| Horsepower | 23.4 PS (17.2 kW; 23.0 HP) |
| Starter | Electric |
| Oil type | SAE 10W-30 |
| Oil capacity: | 1.9 L (2 US. qt, 1.7 Imp. qt.) |
| Spark plug | Champion RC12YC |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Power |
| Brakes | – |
| Differential lock | Standard |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 12.9 kmh (8 mph) Reverse: 6.4 (4 mph) |
| Transmission oil capacity | 5.7 L (1.5 US. gal, 1.3 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 16×7.5-8 |
| Rear tires | Lawn/turf: 24×10.5-12 |
| Three-Point Hitch | |
| Caterogy | 0 (optional) |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with E-Vac clutch |
| Front PTO speed | – |
