Cub Cadet 70

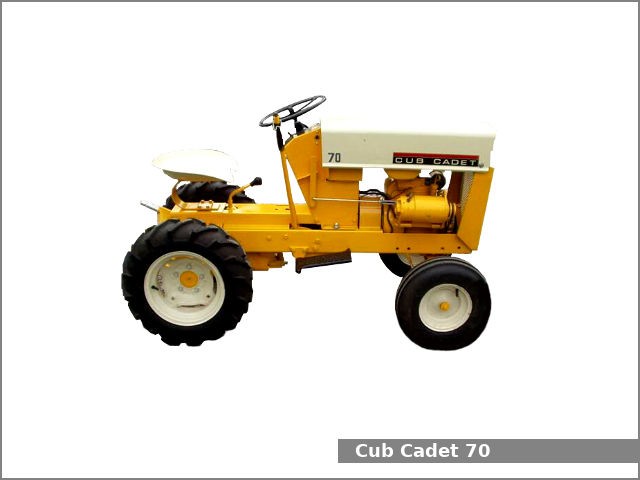

Cub Cadet 70The Cub Cadet 70 is a 2WD garden tractor manufactured by the Cub Cadet (a part of International Harvester) in Louisville, Kentucky, USA from 1963 to 1965. The Cub Cadet 70 is equipped with a 0.3 L single-cylinder gasoline engine and shaft-driven gear transmission with 3 forward and 1 reverse gear or creeper with 6 forward and 2 reverse gear.

The Cub Cadet 70 garden tractor used the Kohler K161 engine. It is a 0.3 L, 266 cm2, (16.25 cu·in) single-cylinder natural aspirated gasoline engine with 73.0 mm (2.87 in) of the cylinder bore and 63.5 mm (2.52 in) of the piston stroke. This engine produced 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet 70 is equipped with manual steering, dry disc brakes, open operator station and 4.7 liters (1.2 US gal.; 1 Imp. gal) fuel tank.

Cub Cadet 70 Specifications

General Specifications
Model Cub Cadet 70
Length
Width
Height 1,010 mm (39.8 in)
Wheel base 1,090 mm (42.9 in)
Weight
Fuel tank capacity 4.7 liters (1.2 US gal.; 1 Imp. gal)
Battery 12V
Cabin type Open operator station
Engine
Engine model Kohler K161
Engine type Four-stroke, air-cooled
Cylinders 1
Fuel type Gasoline
Displacement 0.3 L, 266 cm2, (16.25 cu·in)
Bore and stroke 73.0 mm X 63.5 mm (2.87 in X 2.52 in)
Horsepower 7.1 PS (5.2 kW; 7.0 HP) at 3,600 rpm
Starter Electric (K161S) or retractable (K161T)
Spark plug Champion RJ8C
Spark plug gap 0.65 mm (0.0256 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Dry disc
Transmission model
Transmission type Shaft-driven gear
Gears 3 forward and 1 reverse
Transmission model
Transmission type Creeper
Gears 6 forward and 2 reverse
Tires
Front tires Lawn/turf: 4.80×4.00-8, 16×6.50-8
Rear tires Lawn/turf: 6-12, 8-12
PTO (Power take-off shaft)
Rear PTO type Transmission
Rear PTO spped
