Cub Cadet GT 2100

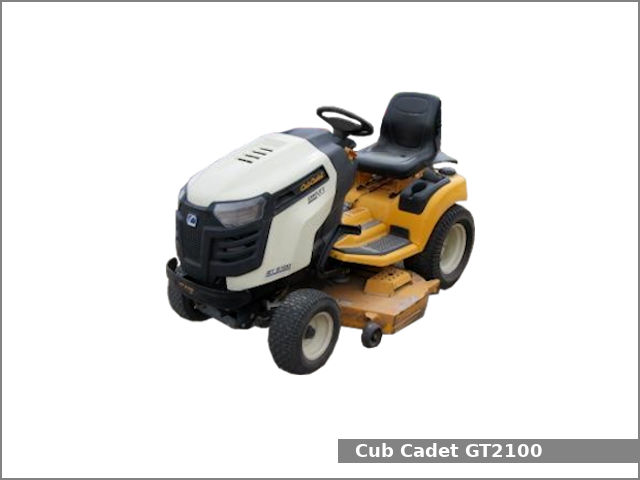

Cub Cadet GT 2100The Cub Cadet GT 2100 is a 2WD garden tractor from the 2000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2011 to 2014. The Cub Cadet GT 2100 is equipped with a 0.7 L (41.1 cu·in) two-cylinder gasoline engine and a shaft-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet GT 2100 garden tractor used the Kohler Command CH680 engine. It is a 0.7 L, 673 cm2, (41.1 cu·in) two-cylinder natural aspirated gasoline engine with 81.0 mm (3.19 in) of the cylinder bore and 66.0 mm (2.6 in) of the piston stroke. This engine produced 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm of output power.

The Cub Cadet GT 2100 is equipped with manual steering, mechanical disc brakes, an open operator station, and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet GT 2100 garden tractor:

  • Mid-mount Cub Cadet 1,060 mm (42 in) mower deck with 2-blades and electric lift
  • Mid-mount Cub Cadet 1,210 mm (48 in) mower deck with 3-blades and electric lift
  • Mid-mount Cub Cadet 1,270 mm (50 in) mower deck with 3-blades and electric lift
  • Mid-mount Cub Cadet 1,370 mm (54 in) mower deck with 3-blades and electric lift

Cub Cadet GT 2100 Specifications

General Specifications
Model Cub Cadet GT 2100
Length 1,930 mm (76 in)
Width 1,085 mm (42.7 in)
Height 1,200 mm (47.2 in)
Wheel base 1,280 mm (50.4 in)
Ground clearance 150 mm (5.9 in)
Weight 327 kg (721 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V, CCA 275A
Cabin type Open operator station
Engine
Engine model Kohler Command CH680
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 673 cm2, (41.1 cu·in)
Bore and stroke 81.0 mm X 66.0 mm (3.19 in X 2.6 in)
Horsepower 23.4 PS (17.2 kW; 23.0 HP) at 3,600 rpm
Starter Electric
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Mechanical disc
Transmission model Hydro-Gear BDU-10
Transmission type Shaft-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 10.5 kmh (6.5 mph) Reverse: 5.6 kmh (3.5 mph)
Transmission oil capacity 5.4 L (1.4 US. gal, 1.2 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 23×9.5-12
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
