Cub Cadet GT 3200

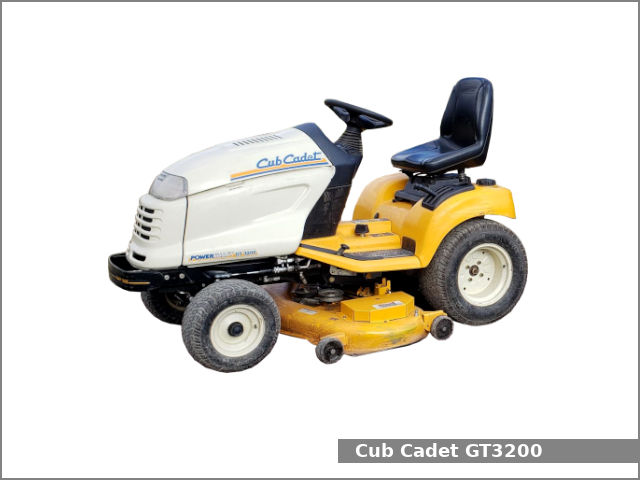

Cub Cadet GT 3200The Cub Cadet GT 3200 is a 2WD lawn and garden tractor from the 3000 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2005 to 2010. The Cub Cadet GT 3200 is equipped with a 0.7 L (44.2 cu·in) two-cylinder gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet GT3200 garden tractor used the Kohler Command CH730S engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of output power and 55.2 N·m (5.6 kg·m, 40.7 ft·lb) at 2,400 rpm of torque.

The Cub Cadet GT 3200 is equipped with hydrostatic power steering, mechanical disc brakes, an open operator station, and 17.0 liters (4.5 US gal.; 3.7 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet GT3200 garden tractor:

  • Mid-mount Cub Cadet 1,270 mm (50 in) mower deck with 3-blades and hydraulic lift
  • Mid-mount Cub Cadet 1,370 mm (54 in) mower deck with 3-blades and hydraulic lift
  • Mid-mount Cub Cadet 1,520 mm (60 in) mower deck with 3-blades and hydraulic lift
  • Front-mount Cub Cadet 190-352 1,370 mm (54 in) blade
  • Front-mount Cub Cadet 190-353 1,140 mm (45 in) two-stage snow blower

Cub Cadet GT 3200 Specifications

General Specifications
Model Cub Cadet GT 3200
Length 1,830 mm (72 in)
Width 1,060 mm (41.7 in)
Height 1,100 mm (43.3 in)
Wheel base 1,250 mm (49.2 in)
Ground clearance 150 mm (5.9 in)
Weight 365 kg (805 lbs)
Fuel tank capacity 17.0 liters (4.5 US gal.; 3.7 Imp. gal)
Battery 12V, CCA 435A
Cabin type Open operator station
Engine
Engine model Kohler Command CH730S
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 724 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 67.0 mm (3.27 in X 2.64 in)
Compression ratio 9.0:1
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm
Torque 55.2 N·m (5.6 kg·m, 40.7 ft·lb) at 2,400 rpm
Starter Electric
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Brakes Mechanical disc
Transmission model
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 12.9 kmh (8 mph) Reverse: 6.4 kmh (4 mph)
Transmission oil capacity 5.2 L (1.4 US. gal, 1.1 Imp. gal.)
Tires
Front tires Lawn/turf: 16×7.5-8
Rear tires Lawn/turf: 24×10.5-12
Three-Point Hitch
Category 0 (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
