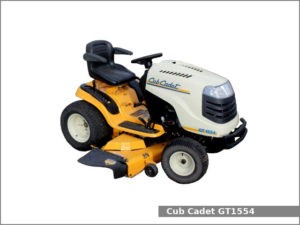

Cub Cadet GT1554

Cub Cadet GT1554The Cub Cadet GT 1554 is a 2WD garden tractor from the 1500 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2006 to 2008. The Cub Cadet GT1554 is equipped with a 0.7 L two-cylinder gasoline engine and belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet GT1554 garden tractor used the Kohler Command PRO CV740 engine. It is a 0.7 L, 725 cm2, (44.2 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. The compression ratio rating is 9.0:1. This engine produced 27.3 PS (20.1 kW; 27.0 HP) at 3,600 rpm of maximum output power.

The Cub Cadet GT 1554 is equipped with manual steering, single dry disc brakes, open operator station, and 13.2 liters (3.5 US gal.; 2.9 Imp. gal) fuel tank.

Following attachments are available for Cub Cadet GT1554 garden tractor:

  • Mid-mount Cub Cadet 54 in (1,370 mm) mower deck with 3-blades
  • Front-mount Cub Cadet 46 in (1,160 mm) blade
  • Front-mount Cub Cadet 42 in (1,060 mm) two-stage snowblower

Cub Cadet GT1554 Specifications

General Specifications
Model Cub Cadet GT1554
Length 1,727 mm (68 in)
Width 1,525 mm (60 in)
Height 1,092 mm (43 in)
Wheel base 1,170 mm (46.1 in)
Weight 240 kg (529 lbs)
Fuel tank capacity 13.2 liters (3.5 US gal.; 2.9 Imp. gal)
Battery 12V CCA: 235A
Cabin type Open operator station
Engine
Engine model Kohler Command PRO CV740
Engine type Four-stroke, air-cooled, V
Cylinders 2
Fuel type Gasoline
Displacement 0.7 L, 725 cm2, (44.2 cu·in)
Bore and stroke 83.0 mm X 86.0 mm (3.27 in X 3.39 in)
Compression ratio 9.0:1
Horsepower 27.3 PS (20.1 kW; 27 HP) at 3,600 rpm
Torque 45.2 N·m (4.6 kg·m, 33.3 ft·lb) at 2,000 rpm
Starter Electric
Oil type SAE 10W-30, API: SJ
Oil capacity: 1.8 L (1.9 US. qt, 1.58 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Single dry disc
Transmission model
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 (2.3 mph)
Transmission oil capacity 2.25 L (2.38 US. qt, 1.98 Imp. qt.)
Tires
Front tires Lawn/turf: 16×7.5×8
Rear tires Lawn/turf: 23×10.5×12
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO spped
