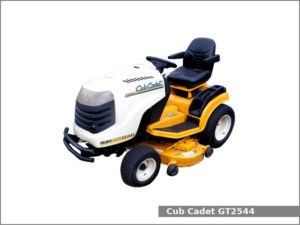

Cub Cadet GT2544

Cub Cadet GT2544The Cub Cadet GT2544 is a 2WD lawn and garden tractor from the 2500 series. This tractor was manufactured by Cub Cadet (a part of MTD) from 2005 to 2010. The Cub Cadet GT2544 is equipped with a 0.6 L (38.1 cu·in) V-twin gasoline engine and a hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet GT2544 garden tractor used the Kohler Command engine. It is a 0.6 L, 624 cm2, (38.1 cu·in) V-twin natural aspirated gasoline engine with 77.0 mm (3.03 in) of the cylinder bore and 67.0 mm (2.64 in) of the piston stroke. This engine produced 21.4 PS (15.7 kW; 21.0 HP) of output power.

The Cub Cadet GT 2544 is equipped with power steering, disc brakes, open operator station, and 8.1 liters (2.12 US gal.; 1.8 Imp. gal) fuel tank.

Following attachments are available for the Cub Cadet GT 2544 garden tractor:

  • Mid-mount Cub Cadet 44 in (1,110 mm) mower deck with 3-blade and manual spring-assisted lift
  • Front-mount Cub Cadet 190-302 42 in (1,060 mm) blade
  • Front-mount Cub Cadet 190-341 42 in (1,060 mm) two-stage snow blower

Cub Cadet GT2544 Specifications

General Specifications
Model Cub Cadet GT 2544
Length 1,820 mm (71.7 in)
Width 1,245 mm (49 in)
Height 1,065 mm (41.9 in)
Wheel base 1,190 mm (46.9 in)
Ground clearance 150 mm (5.9 in)
Weight 362 kg (798 lbs)
Fuel tank capacity 8.1 liters (2.1 US gal.; 1.8 Imp. gal)
Battery 12V, CCA 275A
Cabin type Open operator station
Engine
Engine model Kohler Command
Engine type Four-stroke, air-cooled, V-twin
Cylinders 2
Fuel type Gasoline
Displacement 0.6 L, 624 cm2, (38.1 cu·in)
Bore and stroke 77.0 mm X 67.0 mm (3.03 in X 2.64 in)
Horsepower 21.4 PS (15.7 kW; 21.0 HP)
Starter Electric
Oil type SAE 10W-30
Oil capacity: 1.9 L (2 US. qt, 1.7 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Disc
Transmission model Hydro-Gear BDU-10
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 9.3 kmh (5.8 mph) Reverse: 5.6 (3.5 mph)
Transmission oil capacity 5.7 L (1.5 US. gal, 1.3 Imp. gal.)
Tires
Front tires Lawn/turf: 16×6.5-8
Rear tires Lawn/turf: 23×9.5-12
Hitch
Caterogy Sleeve hitch (optional)
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Front PTO type Independent with electric clutch
Front PTO speed
