Cub Cadet LTX 1045

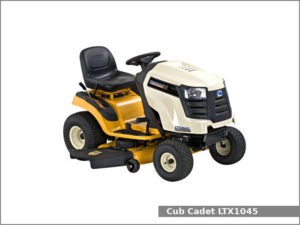

Cub Cadet LTX 1045The Cub Cadet LTX 1045 is a 2WD lawn tractor from the LTX 1000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2009 to 2014. The Cub Cadet LTX 1045 is equipped with a 0.6 L single-cylinder gasoline engine and hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet LTX 1045 lawn tractor used the Kohler Courage SV600 engine. It is a 0.6 L, 597 cm2, (36.4 cu·in) single-cylinder natural aspirated gasoline engine with 94.0 mm (3.7 in) of the cylinder bore and 86.0 mm (3.39 in) of the piston stroke. The compression ratio rating is 8.5:1. This engine produced 20.3 PS (14.9 kW; 20.0 HP) of maximum output power and 46.1 N·m (4.7 kg·m, 34 ft·lb) of peak torque.

The Cub Cadet LTX 1045 is equipped with manual steering, an open operator station and 12.5 liters (3.3 US gal.; 2.7 Imp. gal) fuel tank.

Following attachments are available for Cub Cadet LTX 1045 lawn tractor:

  • Mid-mount Cub Cadet: 46 inch (1,160 mm) mower deck with two-blades and manual lift
  • Front-mount Cub Cadet 190-833: 46 inch (1,160 mm) blade
  • Front-mount Cub Cadet 190-032: 42 inch (1,060 mm) front-mount snowblower

Cub Cadet LTX 1045 Specifications

General Specifications
Model Cub Cadet LTX 1045
Length 1,750 mm (68.9 in)
Width
Height
Wheel base 1,200 mm (47.2 in)
Weight 230 kg (507 lbs)
Fuel tank capacity 12.5 liters (3.3 US gal.; 2.7 Imp. gal)
Battery 12V CCA: 190A
Cabin type Open operator station
Engine
Engine model Kohler Courage SV600
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.6 L, 597 cm2, (36.4 cu·in)
Bore and stroke 94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Compression ratio 8.5:1
Horsepower 20.3 PS (14.9 kW; 20.0 HP)
Torque 46.1 N·m (4.7 kg·m, 34 ft·lb)
Starter Electric
Oil type SAE 10W-30, API: SJ
Oil capacity: 1.5 L (1.6 US. qt, 1.32 Imp. qt.)
Spark plug Champion RC12YC
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes
Transmission model Tuff Torq K46A
Transmission type Hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 (2.3 mph)
Transmission oil capacity 1.8 L (1.9 US. qt, 1.58 Imp. qt.)
Tires
Front tires Lawn/turf: 15×6
Rear tires Lawn/turf: 20×8
PTO (Power take-off shaft)
Middle PTO type Independent with manual lever clutch
Middle PTO spped
