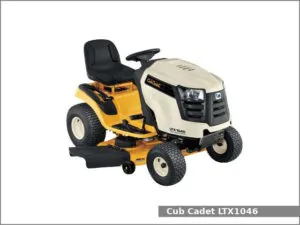

The Cub Cadet LTX 1046 VT is a 2WD lawn tractor from the LTX 1000 series. This tractor was manufactured by the Cub Cadet (a part of MTD) from 2009 to 2010. The Cub Cadet LTX 1046VT is equipped with a 0.7 L V-twin gasoline engine and hydrostatic transmission with Infinite forward and reverse gears.
The Cub Cadet LTX 1046 VT lawn tractor used the Briggs & Stratton 44L777 engine. It is a 0.7 L, 724 cm2, (44.2 cu·in) V-twin natural aspirated gasoline engine with 79.0 mm (3.11 in) of the cylinder bore and 73.0 mm (2.87 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) of maximum output power.
The Cub Cadet LTX 1046 VT is equipped with the manual sector and pinion steering, disc brakes, open operator station, and 12.5 liters (3.3 US gal.; 2.7 Imp. gal) fuel tank. The LTX 1046VT used mid-mount Cub Cadet 46 in (1,160 mm) mower deck with 2-blades with manual lift.
Cub Cadet LTX1046VT Specifications
| General Specifications | |
| Model | Cub Cadet LTX 1046 VT |
| Length | 1,750 mm (68.9 in) |
| Width | – |
| Height | – |
| Wheel base | 1,200 mm (47.2 in) |
| Weight | 232 kg (511 lbs) |
| Fuel tank capacity | 12.5 liters (3.3 US gal.; 2.7 Imp. gal) |
| Battery | 12V, CCA 235A |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Briggs & Stratton 44L777 |
| Engine type | Four-stroke, air-cooled, V-twin |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 0.7 L, 724 cm2, (44.2 cu·in) |
| Bore and stroke | 79.0 mm X 73.0 mm (3.11 in X 2.87 in) |
| Horsepower | 24.3 PS (17.9 kW; 24.0 HP)/td> |
| Starter | Electric |
| Oil type | SAE 10W-30 |
| Oil capacity: | 1.8 L (1.9 US. qt, 1.58 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual sector and pinion |
| Brakes | Disc |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Speed | Forward: 8.4 kmh (5.2 mph) Reverse: 3.7 (2.3 mph) |
| Transmission oil capacity | 1.9 L (0.5 US. gal, 0.4 Imp. gal.) |
| Tires | |
| Front tires | Lawn/turf: 15×6 |
| Rear tires | Lawn/turf: 20×10 |
| PTO (Power take-off shaft) | |
| Front PTO type | Independent with electric clutch |
| Front PTO spped | – |
