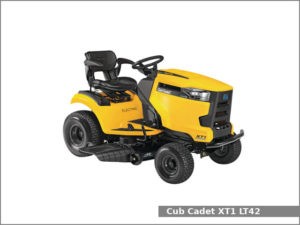

Cub Cadet XT1 LT42

Cub Cadet XT1 LT42The Cub Cadet XT1 LT42 is a 2WD lawn tractor from the XT1 Enduro Series. This tractor has been manufactured by the Cub Cadet (a part of MTD) since 2015. The Cub Cadet XT1 LT42 is equipped with 0.6 L single-cylinder Kohler SV541 gasoline engine and Tuff Torq K46 belt-driven hydrostatic transmission with infinite forward and reverse gears.

The Cub Cadet XT1 LT42 lawn tractor used Kohler SV541 engine. It is a 0.6 L, 596 cm2, (36.4 cu·in) single-cylinder gasoline engine with 94.0 mm (3.7 in) of cylinder bore and 86.0 mm (3.39 in) of piston stroke. The compression ratio rating is 8.5:1. This engine produced 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm of maximum output power.

The Cub Cadet XT1 LT42 is equipped with manual steering, disc brakes, open operator station and 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Following attachments are available for Cub Cadet XT1 LT42 lawn tractor:

  • Mid-mount Cub Cadet 42 inch (1,060 mm) mower deck with two-blades and spring-assisted manual lift
  • Front-mount Cub Cadet 46 inch (1,160 mm) blade
  • Front-mount Cub Cadet 42 inch (1,060 mm) three-stage snow blower

Cub Cadet XT1 LT42 Specifications

General Specifications
Model Cub Cadet XT1 LT42
Length 1,720 mm (67.7 in)
Width
Height 1,070 mm (42.1 in)
Wheel base 1,190 mm (46.9 in)
Weight 185 kg (407.9 lbs)
Fuel tank capacity 11.4 liters (3 US gal.; 2.5 Imp. gal)
Battery 12V
Cabin type Open operator station.
Engine
Engine model Kohler SV541
Engine type Four-stroke, air-cooled, inline
Cylinders 1
Fuel type Gasoline
Displacement 0.6 L, 596 cm2, (36.4 cu·in)
Bore and stroke 94.0 mm X 86.0 mm (3.7 in X 3.39 in)
Compression ratio 8.5:1
Horsepower 18.2 PS (13.4 kW; 18 HP) at 3,600 rpm
Starter Electric
Oil type SAE: 10W-30, 5W-20, 5W-30
API: SG, SH, SJ or higher
Oil capacity: 1.2 L (1.27 US. qt, 1.06 Imp. qt.)
Spark plug Champion RC12YC (Gap: 0.76 mm (0.030 in)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual
Brakes Disc
Transmission model Tuff Torq K46
Transmission type Belt-driven hydrostatic
Gears Infinite forward and reverse
Speed Forward: 8.8 kmh (5.5 mph) Reverse: 5.0 (3.1 mph)
Tires
Front tires Lawn/turf: 15×6
Rear tires Lawn/turf: 20×8
PTO (Power take-off shaft)
Rear PTO type Independent with manual clutch
Rear PTO spped
