J.I. Case 1410

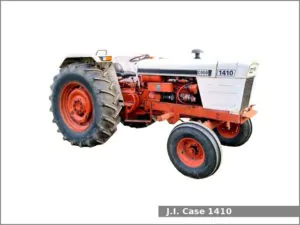

J.I. Case 1410The J.I. Case 1410 is a 2WD or 4WD utility tractor manufactured by the J.I. Case in Meltham Mills, Huddersfield, England from 1976 to 1980. The J.I. Case 1410 is equipped with 3.6 L four-cylinder diesel engine and synchromesh or partial power shift transmission with 12 forward and 4 reverse gears. The J.I. Case 1410 was the same tractor as the David Brown 1410 with synchromesh transmission or David Brown 1412 with power shift transmission.

The J.I. Case 1410 utility tractor used 3.6 L, 3,589 cm2, (219 cu·in) four-cylinder diesel engine with 100.0 mm (3.94 in) of cylinder bore and 114.0 mm (4.49 in) of piston stroke. This utility tractor is equipped with an open operator station, three-point hitch (Category II) and rear PTO-shaft. The tractor used 38.3 liters (10.1 US gal.; 8.4 Imp. gal) fuel tank.

J.I. Case 1410 Specifications

General Specifications
Model J.I. Case 1410
Length –
Width –
Height –
Wheel base 2,280 mm (89.8 in)
Weight 3,220 kg (7,099 lbs)
Fuel tank capacity 38.3 liters (10.1 US gal.; 8.4 Imp. gal)
Battery –
Cabin type Open operator station or ROPS.
Engine
Engine model David Brown
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.6 L, 3,589 cm2, (219 cu·in)
Bore and stroke 100.0 mm X 114.0 mm (3.94 in X 4.49 in)
Horsepower –
Starter Electric
Coolant capacity: 14.2 L (15 US. qt, 12.49 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type –
Brakes –
Transmission model –
Transmission type Synchromesh
Gears 12 forward and 4 reverse
Transmission model Hydra-Shift
Transmission type Partial power shift
Gears 12 forward and 4 reverse
Tires
Front tires 7.50-16
Rear tires 18.4-34
Three-Point Hitch
Caterogy II
Control type –
Lift capacity –
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO spped 540 or 100 rpm
Hydraulic system
Hydraulic type Open
Hydraulic capacity 13 L (13.74 US. qt, 11.44 Imp. qt.)
Valves 1
Pump flow 8 gpm (30.3 lpm)
