Kubota L2550

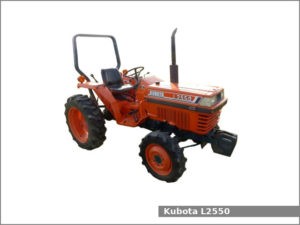

Kubota L2550The Kubota L2550 is a 2WD (L2550F) or 4WD (L2550DT) compact utility tractor from the L series. This tractor was manufactured by the Kubota from 1985 to 1991. The Kubota L2550 is equipped with a 1.4 L three-cylinder diesel engine and one of three transmissions: mechanical shuttle transmission with 8 forward and 7 reverse gears, partially synchronized transmission with 8 forward and 7 reverse gears or power shift transmission with 8 forward and 8 reverse gears.

The Kubota L2550 compact utility tractor used the Kubota D1402-DI-A engine. It is a 1.4 L, 1395 cm2, (85.1 cu·in) three-cylinder natural aspirated diesel engine with 85.0 mm (3.35 in) of the cylinder bore and 82.0 mm (3.23 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 29.9 PS (22.0 kW; 29.5 HP) at 2,600 rpm of gross output power.

The Kubota L2550 is equipped with manual or power (option) steering, differential wet disc brakes, open operator station with two-post ROPS and 29.0 liters (7.7 US gal.; 6.4 Imp. gal) fuel tank.

Following attachments are available for the Kubota L2550 compact utility tractor:

  • Mid-mount Kubota RC60-25 60 in (1,520 mm) with 3-blades
  • Mid-mount Kubota RC72-25 72 in (1,820 mm) with 3-blades
  • Rear-mount Kubota FL1021 tiller
  • Rear-mount Kubota FL1271 tiller
  • Kubota BF400G loader
  • Kubota BL4530 backhoe

Kubota L2550 Specifications

General Specifications
Model Kubota L2550
Length 2,770 mm (109.1 in)
Width 1,300 mm (51.2 in)
Height 1,990 mm (78.3 in)
Wheel base 1,640 mm (64.6 in)
Weight 1,150 kg (2,535 lbs)
Fuel tank capacity 29.0 liters (7.7 US gal.; 6.4 Imp. gal)
Battery 12V, 80Ah
Cabin type Open operator station with two-post ROPS
Engine
Engine model Kubota D1402-DI-A
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.4 L, 1,395 cm2, (85.1 cu·in)
Bore and stroke 85.0 mm X 82.0 mm (3.35 in X 3.23 in)
Compression ratio 18.0:1
Horsepower 29.9 PS (22.0 kW; 29.5 HP) at 2,600 rpm
Starter Electric
Oil capacity: 5.7 L (6 US. qt, 5 Imp. qt.)
Coolant capacity: 5.0 L (5.3 US. qt, 4.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual or power (option)
Brakes Differential wet disc
Differential lock Rear standard
Transmission model
Transmission type Mechanical shuttle
Gears 8 forward and 7 reverse
Speed Forward: 21.7 kmh (13.5 mph) Reverse: 13.8 (8.6 mph)
Transmission oil capacity 31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Transmission model
Transmission type Partially synchronized
Gears 8 forward and 7 reverse
Speed Forward: 20.8 kmh (12.9 mph) Reverse: 13.2 (8.2 mph)
Transmission oil capacity 31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Transmission model GST (Glide shift)
Transmission type Power shift with wet disc clutch
Gears 8 forward and 8 reverse
Speed Forward: 21.4 kmh (13.3 mph) Reverse: 19.1 (11.9 mph)
Tires
Front tires Ag: 5.00-15 (2WD), 7-16 (4WD)
Rear tires Ag: 11.2-24
Three-Point Hitch
Caterogy I
Control type Position control, draft control (option)
Lift capacity (at ends) 1,100 kg (2,430 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 1,080/2,000 rpm
Rear PTO type Continuous or live (optional)
Rear PTO spped 540/1,000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 31.0 L (32.76 US. qt, 27.28 Imp. qt.)
Pressure 2275 psi (156.9 bar)
Valves 1 to 3
Pump flow 6.7 gpm (25.4 lpm)
Steering flow 2.8 gpm (10.6 lpm)
Total flow 9.5 gpm (36 lpm)
