Kubota L3130

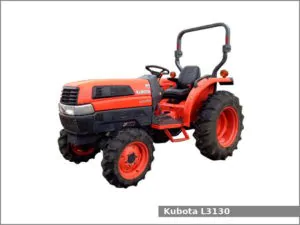

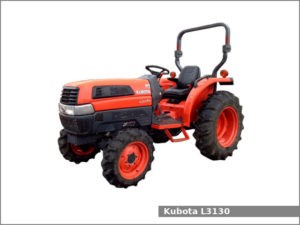

Kubota L3130The Kubota L3130 is a 2WD (L3130F) or 4WD compact utility tractor from the L30 series. This tractor was manufactured by the Kubota from 2003 to 2007. The Kubota L3130 is equipped with a 1.5 L three-cylinder diesel engine and one of three transmissions: hydrostatic transmission with infinite (3-range) forward and reverse gears, FST sync shuttle transmission with 8 forward and 8 reverse gears or glide shift (GST) transmission 12 forward and 8 reverse gears.

The Kubota L3130 compact utility tractor used the Kubota D1503 engine. It is a 1.5 L, 1,499 cm2, (91.5 cu·in) three-cylinder natural aspirated diesel engine with 83.0 mm (3.27 in) of the cylinder bore and 92.4 mm (3.64 in) of the piston stroke. This engine produced 31.4 PS (23.1 kW; 31.0 HP) of net horsepower and 25.8 PS (19 KW; 25.5 HP) of PTO output power.

The Kubota L3130 is equipped with hydrostatic power steering, wet disc type brakes, open operator station with two-post ROPS, and 40.0 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank.

Following attachments are available for Kubota L3130 compact utility tractor:

  • Kubota LA723 loader
  • Kubota LA513 loader

Kubota L3130 versions:

  • L3130F: 2WD F8/R8 model
  • L3130DT: 4WD F8/R8 model
  • L3130GST: 4WD F12/R8 model
  • L3130HST: 4WD hydro model

Kubota L3130 Specifications

General Specifications
Model Kubota L3130
Length 3,025 mm (119.1 in)
Width 1,430 mm (56.3 in)
Height 2,255 mm (88.8 in)
Wheel base 1,805 mm (71.1 in)
Weight 1,480 kg (3262 lbs)
Fuel tank capacity 40.0 liters (10.6 US gal.; 8.8 Imp. gal)
Battery 12V, CCA: 490A
Cabin type Open operator station with two-post ROPS.
Engine model Kubota D1503
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,499 cm2, (91.5 cu·in)
Bore and stroke 83.0 mm X 92.4 mm (3.27 in X 3.64 in)
Horsepower 31.4 PS (23.1 kW; 31.0 HP)
Torque 102.9 N·m (10.5 kg·m, 75.8 ft·lb)
Starter Electric
Oil capacity: 5.7 L (6.02 US. qt, 5.02 Imp. qt.)
Coolant capacity: 6.0 L (6.34 US. qt, 5.28 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc type
Transmission model FST
Transmission type Fully synchronized main and shuttle transmission
Gears 8 forward and 8 reverse
Speed Forward: 31.0 kmh (19.3 mph) Reverse: 25.8 (16 mph)
Transmission oil capacity 42.0 L (11.1 US. gal, 9.2 Imp. gal.)
Transmission model GST
Transmission type Glide shift
Gears 12 forward and 8 reverse
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Front tires Ag: 6.0-16 (2WD), 7.2-16 (4WD)
Rear tires Ag: 12.4-24
Three-Point Hitch
Caterogy I
Control type Position control
Lift capacity 1,700 kg (3,749 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO spped 2,000 rpm
Rear PTO type Independent
Rear PTO spped 540/750 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2560 psi (176.5 bar)
Pump flow 8.3 gpm (31.4 lpm)
Total flow 13.2 gpm (50 lpm)
Steering flow 4.9 gpm (18.5 lpm)
