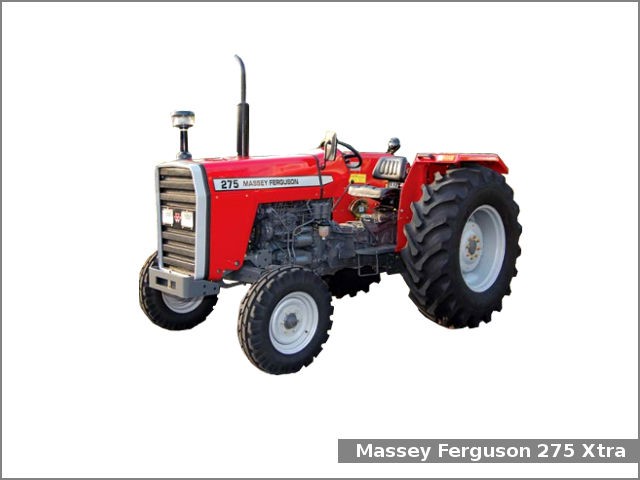

Massey Ferguson 275 Xtra

Massey Ferguson 275 XtraThe Massey Ferguson 275 Xtra is a two-wheel or four-wheel tractor, manufactured under Massey Ferguson brand. The Massey Ferguson 275 Xtra tractor is equipped with Simpson S440 (4.0 L, 244 cu.in.) diesel engine and two transmission options: Sliding Spur transmission with 8 forward and 2 reverse or Synchromesh transmission with 12 forward and 4 reverse.

The 275 Xtra tractor used a four-cylinder naturally-aspirated liquid-cooled direct injection diesel engine Simpson S440, with 100 mm (3.94 in) of the cylinder bore and 127 mm (5 in) of the piston stroke. The Simpson S440 engine produced 75 PS (55 kW; 74 HP) at 2,200 rpm of output power and 88 Nm (29.4 kg·m; 212.5 ft·lb) at 1,400 rpm of torque. The engine used an oil-bath with a pre-cleaner air cleaner

The Massey Ferguson 275 Xtra used hydrostatic power-assisted steering, mechanical differential, and oil immersed mechanical actuated brakes. The Massey Ferguson 275 Xtra used open operator station.

Massey Ferguson 275 Xtra specifications

General Specifications
Model Massey Ferguson 275 Xtra
Length 3,890 mm (153.1 in.)
Width
Height 2,520 mm (99.2 in.)
Wheelbase 2,290 mm (90.2 in.)
Ground clearance
Weight (operating) 2WD 2,780 kg (6128 lb.)
4WD 2,950 kg (6503 lb.)
Fuel tank capacity 70 l (18.5 Gal.)
Battery 12V
Engine
Engine model Simpson S440
Number of Cylinders 4
Firing order
Fuel Diesel
Displacement 4.0 L, (244 cu.in.)
Bore x stroke 100 x 127 mm (3.94 x 5.0 in)
Power output 75 PS (55 kW; 74 HP) at 2,200 rpm
Torque 88 Nm (29.4 kg·m; 212.5 ft·lb) at 1,400 rpm
Starter type Electric starter
Oil type
Tires size
Front tires 2WD7.50-16
4WD12.4-24
Rear tires 18.4-30
Transmission and chassis
Chassis 4×2 2WD or 4×4 4WD
Steering Hydrostatic
Sliding Spur transmission
Transmission type Sliding gear
Gears 8 forward and 2 reverse
Sinchromesh transmission
Transmission type Sinchromesh
Gears 12 forward and 4 reverse
PTO (Power take-off shaft)
PTO Type: Rear, live type
PTO Speed: 540 rpm
Hydraulic lift
3-point linkage: Category II
Control system:
No. of remote valves:
Max lifting capacity (at link end): 2,050 kg (4519 lb.)
Hydraulic system
Type Ferguson system
Max oil flow 18.0 lpm
Pressure 176 bar
