Massey Ferguson 150

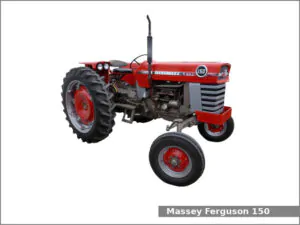

Massey Ferguson 150The Massey Ferguson 150 is a 2WD row-crop tractor manufactured by Massey Ferguson in Detroit, Michigan, USA from 1964 to 1975. The Massey Ferguson 150 is equipped with one of three engines: a 2.5 L (153.0 cu·in) three-cylinder diesel engine, a 2.5 L (153.0 cu·in) three-cylinder gasoline engine or a 2.4 L (145.0 cu·in) four-cylinder gasoline engine and one of three transmissions: a gear type with dry plate clutch transmission with 8 forward and 2 reverse gears, a partial power shift with dry plate clutch transmission with 12 forward and 4 reverse gears or a gear type with dry plate clutch transmission with 6 forward and 2 reverse gears.

The tractor could be equipped with the following engines:

  • Perkins AD3.152. It is a 2.5 L, 2,507 cm2, (152.0 cu·in) three-cylinder natural aspirated diesel engine with 91.0 mm (3.58 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.4:1. This engine produced 46.1 PS (33.9 kW; 45.5 HP) at 2,000 rpm of output power.
  • Continental Z-145. It is a 2.4 L, 2,376 cm2, (145.0 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 86.0 mm (3.39 in) and the piston stroke is 103.0 mm (4.06 in). The compression ratio rating is 7.1:1. This engine produced 0 PS ( kW; 0 HP) at rpm of output power.
  • Perkins AG3.152. It is a 2.5 L, 2,507 cm2, (152.0 cu·in) three-cylinder natural aspirated gasoline engine with 91.0 mm (3.58 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 7.5:1.

The MF 150 is equipped with power steering, differential mechanical disc brakes, an open operator station (two-post ROPS and canopy optional), 70.0 liters (18.5 US gal.; 15.4 Imp. gal) fuel tank, and the Massey Ferguson 235 loader.

Massey Ferguson 150 Specifications

General Specifications
Model Massey Ferguson 150
Length 3,340 mm (131.5 in)
Width 1,610 mm (63.4 in)
Height (steering wheel) 1,650 mm (65 in)
Wheel base 2,050 mm (80.7 in)
Tricycle: 2,140 mm (84.3 in)
Ground clearance 320 mm (12.6 in)
Wide row-c: 380 mm (15 in)
Weight (operating) Diesel: 2,180 kg (4,806 lbs)
Fuel tank capacity 70.0 liters (18.5 US gal.; 15.4 Imp. gal)
Battery 12V
Cabin type Open operator station (two-post ROPS and canopy optional)
Engine
Engine model Perkins AD3.152
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.5 L, 2,507 cm2, (152.0 cu·in)
Bore and stroke 91.0 mm X 127.0 mm (3.58 in X 5 in)
Compression ratio 17.4:1
Horsepower 46.1 PS (33.9 kW; 45.5 HP) at 2,000 rpm
Torque 155.9 N·m (15.9 kg·m, 114.9 ft·lb) at 1,200 rpm
Starter Electric
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Coolant capacity: 9.9 L (10.5 US. qt, 8.7 Imp. qt.)
Engine
Engine model Continental Z-145
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Gasoline
Displacement 2.4 L, 2,376 cm2, (145.0 cu·in)
Bore and stroke 86.0 mm X 103.0 mm (3.39 in X 4.06 in)
Compression ratio 7.1:1
Horsepower
Torque 169.5 N·m (17.3 kg·m, 124.9 ft·lb) at rpm
Starter Electric
Engine
Engine model Perkins AG3.152
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Gasoline
Displacement 2.5 L, 2,507 cm2, (152.0 cu·in)
Bore and stroke 91.0 mm X 127.0 mm (3.58 in X 5 in)
Compression ratio 7.5:1
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Coolant capacity: 9.9 L (10.5 US. qt, 8.7 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Differential mechanical disc
Transmission model
Transmission type Gear type with dry plate clutch
Gears 8 forward and 2 reverse
Speed Forward: 24.4 kmh (15.2 mph) Reverse: kmh (0 mph)
Transmission model Multi-Power
Transmission type Partial power shift with dry plate clutch
Gears 12 forward and 4 reverse
Speed Forward: 31.9 kmh (19.8 mph) Reverse: kmh (0 mph)
Transmission model
Transmission type Gear type with dry plate clutch
Gears 6 forward and 2 reverse
Speed Forward: 30.0 kmh (18.6 mph) Reverse: 14.8 kmh (9.2 mph)
Tires
Front tires Ag: 6.00-16 or 5.5-16 (tricycle)
Rear tires Ag: 13.6/12×28 (standard front) or 12.4/11-38
Three-Point Hitch
Category I
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Live or independent (optional)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity 30.3 L (8 US. gal, 6.7 Imp. gal.)
Total flow 4.8 gpm (18.2 lpm)
