Massey Ferguson 1533 (2005-2010)

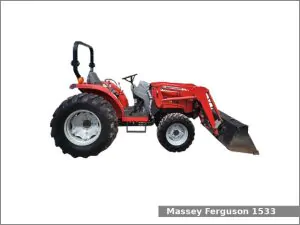

Massey Ferguson 1533 (2005-2010)The Massey Ferguson 1533 is a 4WD compact utility tractor from the 1500 series. This tractor was manufactured by Iseki for distributor Massey Ferguson in Matsuyama, Japan from 2005 to 2014. This first generation was manufactured from 2005 to 2010. The MF 1533 is equipped with a 1.5 L (90.8 cu·in) three-cylinder diesel engine and one of three transmissions: a synchro shuttle transmission with 8 forward and reverse gears, a hydrostatic transmission with infinite (3-range) forward and reverse gears or a power shuttle transmission with 12 forward and 12 reverse gears.

The Massey Ferguson 1533 compact utility tractor used the Iseki engine. It is a 1.5 L, 1,488 cm2, (90.8 cu·in) three-cylinder natural aspirated diesel engine with 87.0 mm (3.43 in) of the cylinder bore and 84.0 mm (3.31 in) of the piston stroke. This engine produced 33.5 PS (24.6 kW; 33.0 HP) at 2,600 rpm of output power.
The MF 1533 is equipped with power steering, wet disc brakes, two-post folding ROPS or Cab (optional) and 40.1 liters (10.6 US gal.; 8.8 Imp. gal) fuel tank.

Following attachments are available for the MF 1533 compact utility tractor:

  • Front-mount Massey Ferguson 1405: 1,670 mm (66 in) blade
  • Front-mount Massey Ferguson 1410: 1,600 mm (63 in) two-stage snowblower
  • Massey Ferguson 1525 loader
  • Massey Ferguson 1575 backhoe
  • Massey Ferguson 1580 backhoe

Massey Ferguson 1533 Specifications

General Specifications
Model Massey Ferguson 1533
Length 3,070 mm (120.9 in)
Width 1,570 mm (61.8 in)
Height 2,210 mm (87 in)
Wheel base 1,770 mm (69.7 in)
Ground clearance 350 mm (13.8 in)
Weight ROPS: 1,370 kg (3,020 lbs)
Cab: 1,535 kg (3,384 lbs)
Fuel tank capacity 40.1 liters (10.6 US gal.; 8.8 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model Iseki
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.5 L, 1,488 cm2, (90.8 cu·in)
Bore and stroke 87.0 mm X 84.0 mm (3.43 in X 3.31 in)
Horsepower 33.5 PS (24.6 kW; 33.0 HP) at 2,600 rpm
Starter Electric
Oil capacity: 4.7 L (5 US. qt, 4.1 Imp. qt.)
Coolant capacity: 6.7 L (7.1 US. qt, 5.9 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Synchro shuttle
Gears 8 forward and reverse
Transmission oil capacity 31.0 L (8.2 US. gal, 6.8 Imp. gal.)
Transmission model
Transmission type Hydrostatic
Gears Infinite (3-range) forward and reverse
Transmission model
Transmission type Power shuttle
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 8-16
Lawn/turf: 27×8.50-15
Industrial: 10-16.5
Rear tires Ag: 12.4-24, 13.6-24
Lawn/turf: 41×14.00-20
Industrial: 14.9-24
Three-Point Hitch
Category I
Control type Position control
Lift capacity (at ends) 1,270 kg (2,800 lbs)
PTO (Power take-off shaft)
Middle PTO type Optional
Middle PTO speed 2000 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 2 (optional)
Pump flow 9.1 gpm (34.4 lpm)
Steering flow 4.9 gpm (18.5 lpm)
With PowerShuttle: 6.0 gpm (22.7 lpm)
Total flow 14.0 gpm (53 lpm)
With PowerShuttle: 15.1 gpm (57.2 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
