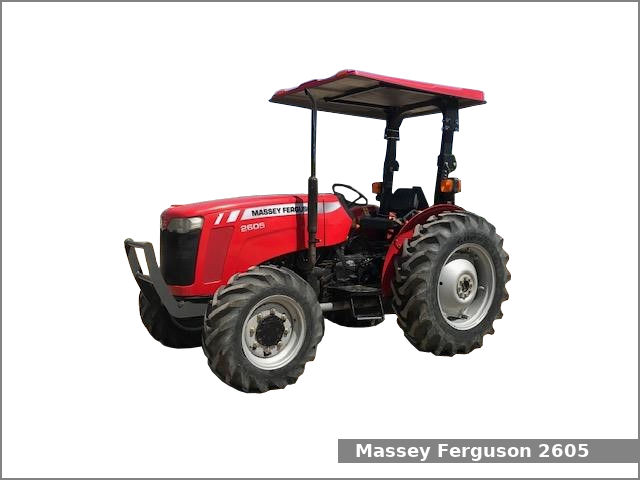

Massey Ferguson 2605

Massey Ferguson 2605The Massey Ferguson 2605 is a 2WD or 4WD utility tractor from the 2600 series. This tractor was manufactured by TAFE for distributor Massey Ferguson (a part of AGCO) from 2007 to 2018. The Massey Ferguson 2605 is equipped with a 2.5 L (151.9 cu·in) three-cylinder diesel engine and the CenterShift transmission with 8 forward and 2 reverse gears.

The MF 2605 utility tractor used the Simpson S325.3 engine. It is a 2.5 L, 2,490 cm2, (152.0 cu·in) three-cylinder natural aspirated diesel engine with 91.0 mm (3.58 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 18.5:1. This engine produced 38.5 PS (28.3 kW; 38.0 HP) at 2,000 rpm of output power and 147.8 N·m (15.1 kg·m, 108.9 ft·lb) at 1,400 rpm of torque.

The Massey Ferguson 2605 is equipped with power steering, mechanical dry drum brakes, an open platform with two-post folding ROPS, and 42.0 liters (11.1 US gal.; 9.2 Imp. gal) fuel tank.

Following attachments are available for the MF 2605 utility tractor:

  • Massey Ferguson L200 (2WD) loader
  • Massey Ferguson L210 (2WD) loader
  • Massey Ferguson DL250 (4WD) loader

Massey Ferguson 2605 Specifications

General Specifications
Model Massey Ferguson 2605
Length 2WD: 3,270 mm (128.7 in)
4WD: 3,300 mm (129.9 in)
Width
Height (ROPS) 2,330 mm (91.7 in)
Wheel base 2WD: 1,930 mm (76 in)
4WD: 1,950 mm (76.8 in)
Ground clearance (drawbar) 250 mm (9.8 in)
Weight 2WD: 1,850 kg (4,079 lbs)
4WD: 2,055 kg (4,530 lbs)
Fuel tank capacity 42.0 liters (11.1 US gal.; 9.2 Imp. gal)
Battery 12V, CCA 622A
Cabin type Open platform with two-post folding ROPS
Engine
Engine model Simpson S325.3
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.5 L, 2,490 cm2, (152.0 cu·in)
Bore and stroke 91.0 mm X 127.0 mm (3.58 in X 5 in)
Compression ratio 18.5:1
Horsepower 38.5 PS (28.3 kW; 38.0 HP) at 2,000 rpm
Torque 147.8 N·m (15.1 kg·m, 108.9 ft·lb) at 1,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Mechanical dry drum
Final drive Direct drive
Transmission model CenterShift
Transmission type
Gears 8 forward and 2 reverse
Tires
Front tires Ag: 6.00-16 (2WD), 10.5/80-18 (4WD)
Rear tires Ag: 13.6-28
Three-Point Hitch
Category II/I
Control type Position and top-link draft control
Lift capacity (at ends) 1,450 kg (3,195 lbs)
PTO (Power take-off shaft)
Rear PTO type Live with dual stage dry clutch or independent electro-hydraulic wet disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Valves 0 to 2
Pump flow 4.2 gpm (15.9 lpm)
Steering flow 6.9 gpm (26.1 lpm)
Total flow 20.9 gpm (79.1 lpm)
