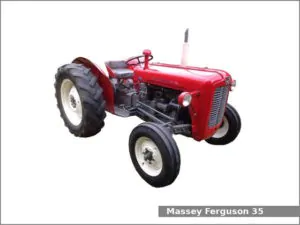

The Massey Ferguson 35 is a 2WD utility tractor manufactured by the Massey Ferguson in Detroit, Michigan, USA from 1960 to 1965. The MF 35 is equipped with one of two engines: a 2.5 L three-cylinder diesel engine or a 2.2 L four-cylinder gasoline engine and one of two transmissions: gear type transmission with dry disc clutch and 6 forward and 2 reverse gears or partial power shift transmission with 12 forward and 4 reverse gears.
The tractor could be equipped with the following engines:
- Perkins 3.152. It is a 2.5 L, 2,502 cm2, (152.7 cu·in) three-cylinder natural aspirated diesel engine with 91.0 mm (3.58 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.4:1.
- Continental. This gasoline engine was available after 1961. It is a 2.2 L, 2,196 cm2, (134.0 cu·in) four-cylinder natural aspirated gasoline engine. The cylinder bore is 84.0 mm (3.31 in) and the piston stroke is 98.0 mm (3.86 in). The compression ratio rating is 6.6:1.
The MF 35 is equipped with manual steering, independent manual shoe/drum brakes, open operator station and 52.6 liters (13.9 US gal.; 11.6 Imp. gal) fuel tank.
Massey Ferguson 35 Specifications
| General Specifications | |
| Model | Massey Ferguson 35 |
| Length | 2,970 mm (116.9 in) |
| Width | 1,610 mm (63.4 in) |
| Height | 1,370 mm (53.9 in) |
| Wheel base | 1,820 mm (71.7 in) |
| Weight (ballasted) | 2,680 kg (5,908 lbs) |
| Fuel tank capacity | 52.6 liters (13.9 US gal.; 11.6 Imp. gal) |
| Battery | Gas: 1 x 12V, Diesel: 2 x 6V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | Perkins 3.152 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 2.5 L, 2,502 cm2, (152.7 cu·in) |
| Bore and stroke | 91.0 mm X 127.0 mm (3.58 in X 5 in) |
| Compression ratio | 17.4:1 |
| Horsepower | – |
| Starter | Electric |
| Engine | |
| Engine model | Continental |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Gasoline |
| Displacement | 2.2 L, 2,196 cm2, (134.0 cu·in) |
| Bore and stroke | 84.0 mm X 98.0 mm (3.31 in X 3.86 in) |
| Compression ratio | 6.6:1 |
| Horsepower | – |
| Starter | Electric |
| Oil capacity: | 5.7 L (6 US. qt, 5 Imp. qt.) |
| Coolant capacity: | 9.5 L (10 US. qt, 8.4 Imp. qt.) |
| Spark plug gap | 0.63 mm (0.025 in) |
| Intake/exhaust valve clearance | 0.330 mm (0.013 in) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | Independent manual shoe / drum |
| Differential lock | Rear optional |
| Transmission model | – |
| Transmission type | Gear type with dry disc clutch |
| Gears | 6 forward and 2 reverse |
| Speed | Forward: 23.5 kmh (14.6 mph) Reverse: 11.4 (7.1 mph) |
| Transmission oil capacity | 30.0 L (7.9 US. gal, 6.6 Imp. gal.) |
| Transmission oil type | SAE 80 GL1 |
| Transmission model | Multi-Power |
| Transmission type | Partial power shift |
| Gears | 12 forward and 4 reverse |
| Speed | Forward: 30.8 kmh (19.1 mph) Reverse: 15.3 (9.5 mph) |
| Transmission oil capacity | 30.3 L (8 US. gal, 6.7 Imp. gal.) |
| Transmission oil type | SAE 80 GL1 |
| Tires | |
| Front tires | Ag: 5.50-16, 6.00-16 |
| Rear tires | Ag: 10-28, 11-28, 13-24 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity (at ends) | – |
| PTO (Power take-off shaft) | |
| Rear PTO type | Transmission |
| Rear PTO spped | 540 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Hydraulic capacity | 30.3 L (32.02 US. qt, 26.66 Imp. qt.) |
| Pressure | 2800 psi (193.1 bar) |
| Pump flow | 3.5 gpm (13.2 lpm) |
