Massey Ferguson 375 (1987-1988) tractor review and specs

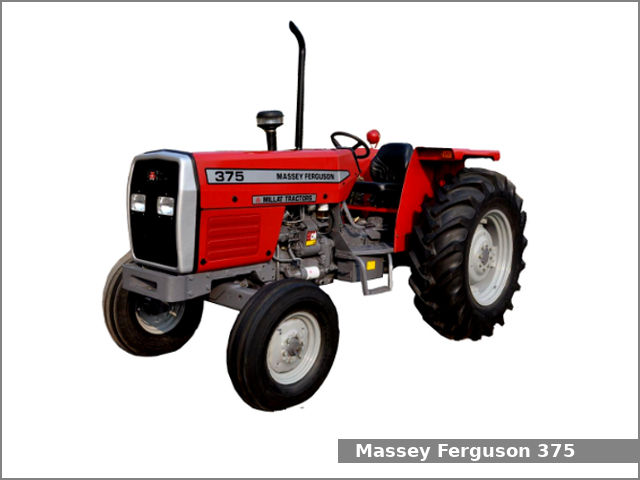

The Massey Ferguson 375 is a 2WD or 4WD utility tractor from the 300 series. This tractor was manufactured by Massey Ferguson in Coventry, England from 1987 to 1997. This first version was manufactured from 1987 to 1988. The MF 375 is equipped with a 3.9 L (236.0 cu·in) four-cylinder diesel engine and one of two transmissions: a synchromesh transmission with 12 forward and 4 reverse gears or a two-speed power shift transmission with 12 forward and 4 reverse gears.

The Massey Ferguson 375 utility tractor used the Perkins A4.236 engine. It is a 3.9 L, 3,867 cm², (236.0 cu·in) four-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 127.0 mm (5.0 in) of the piston stroke. This engine produced 57.8 PS (42.5 kW; 57.0 HP) at 2,200 rpm of PTO output power.

The Massey Ferguson 375 is equipped with hydrostatic power steering, wet disc brakes, two-post ROPS, and 107.9 liters (28.5 US gal.; 23.7 Imp. gal) fuel tank.

Massey Ferguson 375 Specifications

General Specifications
Model	Massey Ferguson 375
Length	2WD: 3,660 mm (144.1 in) 4WD: 3,880 mm (152.8 in)
Width	–
Height	2WD: 2,380 mm (93.7 in) 4WD: 2,430 mm (95.7 in)
Wheel base	–
Weight	2WD: 2,740 kg (6,041 lbs) 4WD: 3,265 kg (7,198 lbs)
Fuel tank capacity	107.9 liters (28.5 US gal.; 23.7 Imp. gal)
Battery	12V
Cabin type	Two-post ROPS
Engine
Engine model	Perkins A4.236
Engine type	Four-stroke, liquid-cooled, inline
Cylinders	4
Fuel type	Diesel
Displacement	3.9 L, 3,867 cm², (236.0 cu·in)
Bore and stroke	98.0 mm X 127.0 mm (3.86 in X 5 in)
Horsepower	57.8 PS (42.5 kW; 57.0 HP) at 2,200 rpm
Starter	Electric

Transmission and chassis
Chassis	4×2 2WD or 4×4 MFWD 4WD
Steering type	Hydrostatic power
Brakes	Wet disc
Transmission model	–
Transmission type	Synchromesh
Gears	12 forward and 4 reverse
Transmission model	Multi-Power
Transmission type	Two-speed power shift
Gears	12 forward and 4 reverse
Tires
Front tires	Ag: 6.50-16 (2WD), 11.2-24 (4WD)
Rear tires	Ag: 16.9-24 (2WD), 16.9-28 (4WD)

Three-Point Hitch
Category	II
Control type	Position and draft control
Lift capacity (at ends)	1,815 kg (4,000 lbs)
PTO (Power take-off shaft)
Rear PTO type	Live
Rear PTO speed	540, 540/1000 rpm
Hydraulic system
Hydraulic type	–
Pressure	3000 psi (206.8 bar)
Pump flow	Linkage pump: 4.4 gpm (16.7 lpm) Linkage pump (optional): 7.2 gpm (27.2 lpm) Aux. pump: 9.5 gpm (36.0 lpm)
Total flow	13.9 gpm (52.6 lpm) 16.8 gpm (63.6 lpm)
