Massey Ferguson 8480

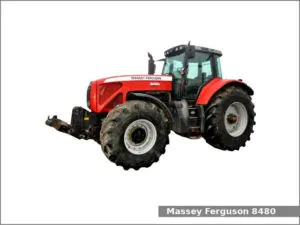

Massey Ferguson 8480The Massey Ferguson 8480 is a 4WD row-crop tractor from the 8400 series. This tractor was manufactured by Massey Ferguson in France from 2004 to 2007. The Massey Ferguson 8480 is equipped with an 8.4 L (513.0 cu·in) six-cylinder diesel engine and one of two transmissions: the DynaStep transmission with 21 forward and 18 reverse gears or the Dyna-VT transmission with infinite forward and reverse gears.

The MF 8480 row-crop tractor used the Sisu Diesel engine. It is a 8.4 L, 8,407 cm2, (514.0 cu·in) six-cylinder turbocharged intercooled diesel engine with 111.0 mm (4.37 in) of the cylinder bore and 145.0 mm (5.71 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 294.2 PS (216.3 kW; 290.0 HP) at 2,200 rpm of output power.

The Massey Ferguson 8480 is equipped with hydrostatic power steering, independent hydraulic wet disc brakes, Cab standard, and 600.0 liters (158.5 US gal.; 132.0 Imp. gal) fuel tank.

Massey Ferguson 8480 Specifications

General Specifications
Model Massey Ferguson 8480
Length 5,230 mm (205.9 in)
Width
Height 3,090 mm (121.7 in)
Wheel base 3,070 mm (120.9 in)
Weight 9,240 kg (20,371 lbs)
Fuel tank capacity 600.0 liters (158.5 US gal.; 132 Imp. gal)
Battery 12V
Cabin type Cab standard
Engine
Engine model Sisu Diesel
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.4 L, 8,407 cm2, (514.0 cu·in)
Bore and stroke 111.0 mm X 145.0 mm (4.37 in X 5.71 in)
Compression ratio 17.5:1
Horsepower 294.2 PS (216.3 kW; 290.0 HP) at 2,200 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Independent hydraulic wet disc
Transmission model DynaStep
Transmission type
Gears 21 forward and 18 reverse
Transmission model Dyna-VT
Transmission type Continuously variable transmission
Gears Infinite forward and reverse
Tires
Front tires Ag: 16.9R30
Rear tires Ag: 18.4R46
Three-Point Hitch
Caterogy III
Control type
Lift capacity (at 610 mm / 24 in) 6,530 kg (14,400 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
540E/1,000 rpm (optional)
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Pressure 2900 psi (199.9 bar)
Valves 4 or 5
Total flow 39.0 gpm (147.6 lpm)
