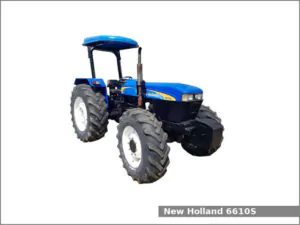

New Holland 6610S

New Holland 6610SThe New Holland 6610S is a 2WD or 4WD utility tractor from the 10S series. This tractor was manufactured by New Holland in Queretaro, Mexico from 1994 to 2003. The New Holland 6610S is equipped with a 5.0 L (304.0 cu·in) four-cylinder diesel engine and unsynchronized gear transmission with 8 forward and 2 reverse gears.

The New Holland 6610S utility tractor used the Ford engine. It is a 5.0 L, 4,982 cm2, (304.0 cu·in) four-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 86.2 PS (63.4 kW; 85.0 HP) at 2,200 rpm of output power.

The New Holland 6610S is equipped with hydrostatic power steering, wet disc brakes, two-post ROPS, 81.4 liters (21.5 US gal.; 17.9 Imp. gal) fuel tank, and 50.0 liters (13.2 US gal, 11 Imp. gal) auxiliary fuel tank.

New Holland 6610S Specifications

General Specifications
Model New Holland 6610S
Length 2WD: 3,680 mm (144.9 in)
4WD: 3,880 mm (152.8 in)
Width
Height (ROPS) 2,430 mm (95.7 in)
Wheel base
Ground clearance 2WD: 460 mm (18.1 in)
4WD: 450 mm (17.7 in)
Weight 2WD: 2,585 kg (5,699 lbs)
4WD: 2,875 kg (6,338 lbs)
Fuel tank capacity 81.4 liters (21.5 US gal.; 17.9 Imp. gal)
Battery 12V
Cabin type Two-post ROPS
Engine
Engine model Ford
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 5.0 L, 4,982 cm2, (304.0 cu·in)
Bore and stroke 112.0 mm X 127.0 mm (4.41 in X 5 in)
Compression ratio 17.5:1
Horsepower 86.2 PS (63.4 kW; 85.0 HP) at 2,200 rpm
Starter Electric
Oil capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Coolant capacity: 13.0 L (13.7 US. qt, 11.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model
Transmission type Unsynchronized gear
Gears 8 forward and 2 reverse
Speed Forward: 29.9 kmh (18.6 mph) Reverse: 14.3 kmh (8.9 mph)
Tires
Front tires Ag: 7.50-16 (2WD), 14.9×24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II
Control type Position control with top-link draft sensing
Lift capacity (at ends) 1,830 kg (4,035 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Gear pump
Pressure 2500 psi (172.4 bar)
Valves 2
Pump flow 9.7 gpm (36.7 lpm)
Steering flow 9.6 gpm (36.3 lpm)
