New Holland 8770

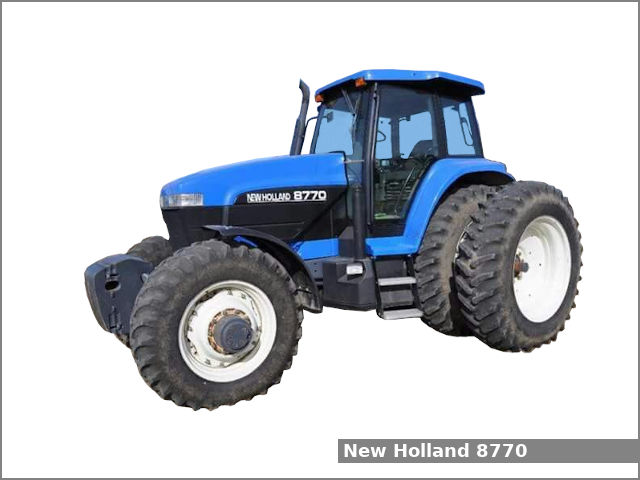

New Holland 8770The New Holland 8770 is a 2WD/4WD row-crop tractor manufactured by New Holland from 1993 to 2000. The New Holland 8770 is equipped with a 7.5 L (456.0 cu·in) six-cylinder diesel engine and a full power shift transmission with 16 forward and 9 reverse gears.

The NH 8770 row-crop tractor used the Ford engine. It is a 7.5 L, 7,472 cm2, (456.0 cu·in) six-cylinder turbocharged diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 192.7 PS (141.7 kW; 190.0 HP) at 2,100 rpm of output power.

The New Holland 8770 is equipped with hydrostatic power steering, wet disc brakes, cab (standard) and 416.4 liters (110.0 US gal.; 91.6 Imp. gal) fuel tank.

New Holland 8770 Specifications

General Specifications
ModelNew Holland 8770
Length4,990 mm (196.5 in)
Width2,450 mm (96.5 in)
Height (cab)3,080 mm (121.3 in)
Wheel base3,000 mm (118.1 in)
Ground clearance Front axle: 500 mm (19.7 in)
Drawbar: 470 mm (18.5 in)
Weight (operating) 2WD: 7,530 kg (16,600 lbs)
4WD: 8,200 kg (18,080 lbs)
SuperSteer: 8,620 kg (19,000 lbs)
Fuel tank capacity416.4 liters (110 US gal.; 91.6 Imp. gal)
BatteryTwo 12V, CCA 950A
Cabin typeCab (standard)
Engine
Engine modelFord
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement7.5 L, 7,472 cm2, (456.0 cu·in)
Bore and stroke112.0 mm X 127.0 mm (4.41 in X 5 in)
Compression ratio17.5:1
Horsepower192.7 PS (141.7 kW; 190.0 HP) at 2,100 rpm
StarterElectric
Oil typeSAE 10W-30, 5W-30
Oil capacity:20.8 L (22 US. qt, 18.3 Imp. qt.)
Coolant capacity:25.0 L (26.4 US. qt, 22 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesWet disc
Transmission model
Transmission typeFull power shift
Gears16 forward and 9 reverse
Speed Forward: 30.2 kmh (18.8 mph) Reverse: 13.5 kmh (8.4 mph)
Tires
Front tires Ag: 14L-16.1 (2WD), 16.9R28 (4WD)
Rear tires Ag: 18.4R42
Three-Point Hitch
CategoryIII
Control type
Lift capacity (at ends)5,670 kg (12,500 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed1000 rpm
Hydraulic system
Hydraulic typeClosed center load sensing (CCLS)
Hydraulic capacity139.7 L (36.9 US. gal, 30.7 Imp. gal.)
Pressure2750 psi (189.6 bar)
Valves3
Pump flow24.0 gpm (90.8 lpm)
Total flow 31.0 gpm (117.3 lpm)
MegaFlow (optional): 55.0 gpm (208.2 lpm)
