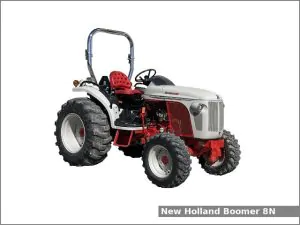

New Holland Boomer 8N

New Holland Boomer 8NThe New Holland Boomer 8N is a 4WD compact utility tractor from the Boomer series. This tractor was manufactured by New Holland from 2009 to 2011. The New Holland Boomer 8N is equipped with a 2.2 L (135.2 cu·in) four-cylinder diesel engine and a continuously variable transmission (CVT) transmission with infinite forward and reverse gears.

The Boomer 8N compact utility tractor used the Shibaura N844L engine. It is a 2.2 L, 2,215 cm2, (135.2 cu·in) four-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 100.0 mm (3.94 in) of the piston stroke. This engine produced 50.7 PS (37.3 kW; 50.0 HP) at 2,800 rpm of output power.

The New Holland Boomer 8N is equipped with hydrostatic power steering, integral wet disc brakes, two-post ROPS or ROPS canopy with windshield (optional) and 49.2 liters (13.0 US gal.; 10.8 Imp. gal) fuel tank.

New Holland Boomer 8N Specifications

General Specifications
Model New Holland Boomer 8N
Length 3,090 mm (121.7 in)
Width 1,730 mm (68.1 in)
Height (ROPS) 2,470 mm (97.2 in)
Wheel base 1,860 mm (73.2 in)
Ground clearance (drawbar) 310 mm (12.2 in)
Weight 1,705 kg (3,759 lbs)
Fuel tank capacity 49.2 liters (13 US gal.; 10.8 Imp. gal)
Battery 12V
Cabin type Two-post ROPS or ROPS canopy with windshield (optional)
Engine model Shibaura N844L
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,215 cm2, (135.2 cu·in)
Bore and stroke 84.0 mm X 100.0 mm (3.31 in X 3.94 in)
Horsepower 50.7 PS (37.3 kW; 50.0 HP) at 2,800 rpm
Starter Electric
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Integral wet disc
Transmission model
Transmission type Continuously variable transmission (CVT)
Gears Infinite forward and reverse
Speed Forward: 29.9 kmh (18.6 mph) Reverse: kmh (0 mph)
Front tires Ag: 8.0×16
Lawn/turf: 27×10.5-15
Industrial: 10×16.5
Rear tires Ag: 14.9×24
Lawn/turf: 44×18-20
Industrial: 17.5×24
Three-Point Hitch
Category I
Control type Top link sensing
Lift capacity 1,270 kg (2,800 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent (optional)
Middle PTO speed
Hydraulic system
Hydraulic type Open center
Pressure 2500 psi (172.4 bar)
Pump flow 10.5 gpm (39.7 lpm)
Steering flow 5.1 gpm (19.3 lpm)
