New Holland Boomer TZ25DA

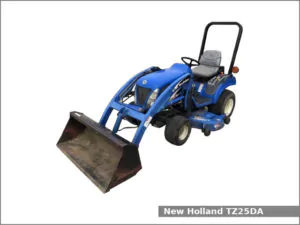

New Holland Boomer TZ25DAThe New Holland Boomer TZ25DA is a 4WD sub-compact utility tractor from the Boomer TZ series. This tractor was manufactured by New Holland from 2005 to 2008. The New Holland Boomer TZ25DA is equipped with a 1.0 L (61.3 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The New Holland Boomer TZ25DA sub-compact utility tractor used the Shibaura S773 engine. It is a 1.0 L, 1,004 cm2, (61.3 cu·in) three-cylinder natural aspirated diesel engine with 77.0 mm (3.03 in) of the cylinder bore and 72.0 mm (2.83 in) of the piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,000 rpm of output power.

The New Holland Boomer TZ25DA is equipped with power steering, wet disc brakes, two-post ROPS, and 29.9 liters (7.9 US gal.; 6.6 Imp. gal) fuel tank.

Following attachments are available for the New Holland Boomer TZ25DA sub-compact utility tractor:

  • Mid-mount New Holland 54CMS: 1,370 mm (54 in) mower deck with 3-blades
  • Mid-mount New Holland 60CMS: 1,520 mm (60 in) mower deck with 3-blades
  • New Holland 12LA loader

New Holland Boomer TZ25DA Specifications

General Specifications
Model New Holland Boomer TZ25DA
Length 2,440 mm (96.1 in)
Width 1,160 mm (45.7 in)
Height (ROPS) 2,280 mm (89.8 in)
Wheel base 1,390 mm (54.7 in)
Weight 598 kg (1,318 lbs)
Fuel tank capacity 29.9 liters (7.9 US gal.; 6.6 Imp. gal)
Battery 12V, CCA 325A
Cabin type Two-post ROPS
Engine
Engine model Shibaura S773
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 1.0 L, 1,004 cm2, (61.3 cu·in)
Bore and stroke 77.0 mm X 72.0 mm (3.03 in X 2.83 in)
Horsepower 25.3 PS (18.6 kW; 25.0 HP) at 3,000 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Tires
Front tires Industrial: 18×8.50-8
Rear tires Industrial: 26×12.00-12
Three-Point Hitch
Category I
Control type
Lift capacity (at ends) 317 kg (699 lbs)
PTO (Power take-off shaft)
Middle PTO type Standard
Middle PTO speed 2,200 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 3.9 gpm (14.8 lpm)
Steering flow 1.9 gpm (7.2 lpm)
Total flow 5.8 gpm (22 lpm)
