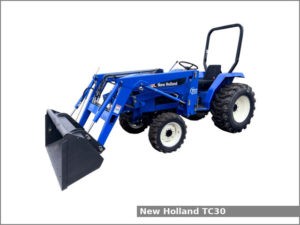

The New Holland TC30 is a 2WD or 4WD compact utility tractor from the TC series. This tractor was manufactured by New Holland from 2001 to 2008. The New Holland TC30 is equipped with a 1.5 L (91.3 cu·in) three-cylinder diesel engine and one of two transmissions: a gear type transmission with 9 forward and 3 reverse gears or a hydrostatic transmission with infinite forward and reverse gears.
The New Holland TC30 compact utility tractor used the Shibaura N843 engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 30.5 PS (22.4 kW; 30.0 HP) at 2,600 rpm of output power.
The New Holland TC30 is equipped with power steering, wet disc type brakes, two-post foldable ROPS, and 27.0 liters (7.1 US gal.; 5.9 Imp. gal) fuel tank. This compact utility tractor could be equipped with the New Holland 7308 loader.
New Holland TC30 Specifications
| General Specifications | |
| Model | New Holland TC30 |
| Length | 2,760 mm (108.7 in) |
| Width | 1,370 mm (53.9 in) |
| Height | 2,090 mm (82.3 in) |
| Wheel base | 1,600 mm (63 in) |
| Weight | 995 kg (2,194 lbs) |
| Fuel tank capacity | 27.0 liters (7.1 US gal.; 5.9 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post foldable ROPS |
| Engine | |
| Engine model | Shibaura N843 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.5 L, 1,496 cm2, (91.3 cu·in) |
| Bore and stroke | 84.0 mm X 90.0 mm (3.31 in X 3.54 in) |
| Horsepower | 30.5 PS (22.4 kW; 30.0 HP) at 2,600 rpm |
| Starter | Electric |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc type |
| Final drive | Spur gear |
| Transmission model | – |
| Transmission type | Gear type |
| Gears | 9 forward and 3 reverse |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite forward and reverse |
| Tires | |
| Front tires | Ag: 5.50-16 (2WD), 7-14 (4WD) |
| Rear tires | Ag: 11.2-2 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | – |
| Lift capacity (at 610 mm /24 in) | 740 kg (1,630 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Optional |
| Middle PTO speed | 2,000 rpm |
| Rear PTO type | Live |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pump flow | 6.1 gpm (23.1 lpm) |
| Steering flow | 3.5 gpm (13.2 lpm) |
| Total flow | 9.6 gpm (36.3 lpm) |
