New Holland TC33

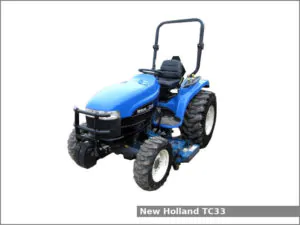

New Holland TC33The New Holland TC33 is a 2WD or 4WD compact utility tractor from the TC series. This tractor was manufactured by New Holland from 1999 to 2003. The New Holland TC33 is equipped with a 1.5 L (91.3 cu·in) three-cylinder diesel engine and one of two transmissions: a gear type transmission with 9 forward and 3 reverse gears or a hydrostatic transmission with infinite forward and reverse gears.

This tractor was available in two variants: the TC33 – base model and the TC33D – deluxe model.

The New Holland TC33 compact utility tractor used the Shibaura N843 engine. It is a 1.5 L, 1,496 cm2, (91.3 cu·in) three-cylinder natural aspirated diesel engine with 84.0 mm (3.31 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. The compression ratio rating is 22.5:1. This engine produced 33.5 PS (24.6 kW; 33.0 HP) at 2,800 rpm of output power.

The New Holland TC33 is equipped with hydrostatic power steering, two-post ROPS, and 27.6 liters (7.3 US gal.; 6.1 Imp. gal) fuel tank.

Following attachments are available for the New Holland TC33 compact utility tractor:

  • Mid-mount New Holland 914A 60 in (1,570 mm) mower deck
  • Mid-mount New Holland 914A 72 in (1,820 mm) mower deck
  • Front-mount New Holland 702C 78 in (1,980 mm) blade
  • Front-mount New Holland 716B 60 in (1,520 mm) snowblower
  • Front-mount New Holland 7308 loader

New Holland TC33 Specifications

General Specifications
ModelNew Holland TC33
Length2,700 mm (106.3 in)
Width1,370 mm (53.9 in)
Height2,230 mm (87.8 in)
Wheel base1,600 mm (63 in)
Ground clearance350 mm (13.8 in)
Weight 2WD: 1,060 kg (2,337 lbs)
4WD: 1,120 kg (2,475 lbs)
Fuel tank capacity27.6 liters (7.3 US gal.; 6.1 Imp. gal)
Cabin typeTwo-post ROPS
Engine modelShibura N843
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement1.5 L, 1,496 cm2, (91.3 cu·in)
Bore and stroke84.0 mm X 90.0 mm (3.31 in X 3.54 in)
Compression ratio22.5:1
Horsepower33.5 PS (24.6 kW; 33.0 HP) at 2,800 rpm
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
Transmission model
Transmission typeGear type
Gears9 forward and 3 reverse
Transmission model
Transmission typeHydrostatic
GearsInfinite forward and reverse
Front tiresAg: 5.50-16 (2WD), 7.00-14 (4WD)
Rear tiresAg: 11.2-24
Three-Point Hitch
Control type
Lift capacity (at ends)740 kg (1,630 lbs)
PTO (Power take-off shaft)
Middle PTO typeOptional
Middle PTO speed2,000 rpm
Rear PTO typeTransmission or live (optional)
Rear PTO speed540 rpm
Hydraulic system
Hydraulic type
Pump flow TC33: 6.6 gpm (25.0 lpm)
TC33D: 7.6 gpm (28.8 lpm)
Steering flow TC33: 3.5 gpm (13.2 lpm)
TC33D: 5.1 gpm (19.3 lpm)
