New Holland TL90

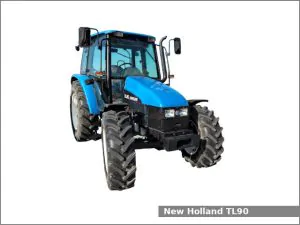

New Holland TL90The New Holland TL90 is a 2WD or 4WD utility tractor from the TL series. This tractor was manufactured by New Holland in Jesi, Italy from 1999 to 2004. The New Holland TL90 is equipped with a 3.9 L (238.0 cu·in) four-cylinder diesel engine and a shuttle command transmission with 12 forward and 12 reverse gears (24 forward and 12 reverse gears with creeper)

The NH TL90 utility tractor used the Iveco 8045 engine. It is a 3.9 L, 3,900 cm2, (238.0 cu·in) four-cylinder turbocharged diesel engine with 104.0 mm (4.09 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 91.3 PS (67.1 kW; 90.0 HP) at 2,500 rpm of output power.

The New Holland TL90 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, two-post folding ROPS or Cab (optional), and 126.8 liters (33.5 US gal.; 27.9 Imp. gal) fuel tank.

New Holland TL90 Specifications

General Specifications
ModelNew Holland TL90
Length 2WD: 3,910 mm (153.9 in)
4WD: 4,060 mm (159.8 in)
Height (cab)2,780 mm (109.4 in)
Wheel base 2WD: 2,340 mm (92.1 in)
4WD: 2,310 mm (90.9 in)
Ground clearance (front axle)290 mm (11.4 in)
Weight (operating) 2WD: 3,625 kg (7,992 lbs)
4WD: 3,895 kg (8,587 lbs)
Fuel tank capacity126.8 liters (33.5 US gal.; 27.9 Imp. gal)
Cabin typeTwo-post folding ROPS or Cab (optional)
Engine modelIveco 8045
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement3.9 L, 3,900 cm2, (238.0 cu·in)
Bore and stroke104.0 mm X 115.0 mm (4.09 in X 4.53 in)
Compression ratio16.5:1
Horsepower91.3 PS (67.1 kW; 90.0 HP) at 2,500 rpm
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet disc
Transmission model
Transmission typeShuttle Command Transmission
Gears12 forward and 12 reverse
Transmission model
Transmission typeShuttle Command Transmission with creeper
Gears24 forward and 12 reverse
Front tires Ag: 10.00-16 (2WD), 440/65R24 (4WD)
Rear tires Ag: 540/65R-34
Three-Point Hitch
Control type
Lift capacity (at ends)2,970 kg (6,550 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeOpen center
Valves2 or 3
Pump flow14.5 gpm (54.9 lpm)
