New Holland TN65

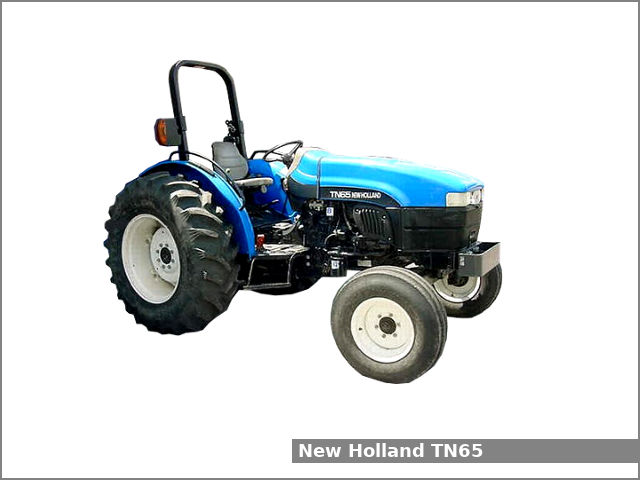

New Holland TN65The New Holland TN65 is a 2WD or 4WD utility tractor from the TN series. This tractor was manufactured by New Holland in Jesi, Italy from 1998 to 2003. The New Holland TN65 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of three transmissions: a mechanical shuttle transmission with dry disc clutch and 8 forward and 8 reverse gears, a power shuttle transmission with wet disc clutch and 8 forward and 8 reverse gears or a shuttle transmission with 16 forward and 16 reverse gears.

The New Holland TN65 utility tractor used the Iveco 8035.05R engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 104.0 mm (4.09 in) of the cylinder bore and 115.0 mm (4.53 in) of the piston stroke. The compression ratio rating is 18.0:1. This engine produced 57.8 PS (42.5 kW; 57.0 HP) at 2,300 rpm of output power and 219.7 N·m (22.4 kg·m, 161.9 ft·lb) at 1,400 rpm of torque.

The New Holland TN65 is equipped with power steering, differential hydraulic wet disc brakes, two-post folding ROPS or Cab (optional), and 73.8 liters (19.5 US gal.; 16.2 Imp. gal) fuel tank.

New Holland TN65 Specifications

General Specifications
Model New Holland TN65
Length 3,930 mm (154.7 in)
Width 1,700 mm (66.9 in)
Height
Wheel base
Weight (shipping) 2WD with ROPS: 2,115 kg (4,663 lbs)
4WD with ROPS: 2,330 kg (5,140 lbs)
2WD with Cab: 2,280 kg (5,030 lbs)
4WD with Cab: 2,550 kg (5,630 lbs)
Fuel tank capacity 73.8 liters (19.5 US gal.; 16.2 Imp. gal)
Battery 12V, CCA: 730A
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model Iveco 8035.05R
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 104.0 mm X 115.0 mm (4.09 in X 4.53 in)
Compression ratio 18.0:1
Horsepower 57.8 PS (42.5 kW; 57.0 HP) at 2,300 rpm
Torque 219.7 N·m (22.4 kg·m, 161.9 ft·lb) at 1,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Transmission model
Transmission type Mechanical shuttle with dry disc clutch
Gears 8 forward and 8 reverse
Transmission model Synchro Command
Transmission type Power shuttle with wet disc clutch
Gears 8 forward and 8 reverse
Transmission model Synchro Command Plus
Transmission type Shuttle
Gears 16 forward and 16 reverse
Tires
Front tires Ag: 7.50-16 (2WD), 8.3-24 (4WD)
Rear tires Ag: 14.9-28
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at 610 mm / 24 in) 1795 kg (3958 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with dry disc clutch
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 42.0 L (11.1 US gal, 9.2 Imp. gal)
Pressure 2755 psi (189.9 bar)
Valves 1 to 3
Pump flow 12.4 gpm (46.9 lpm)
16.9 gpm (64.0 lpm)
Steering flow 7.2 gpm (27.3 lpm)
9.2 gpm (34.8 lpm)
