New Holland TS110

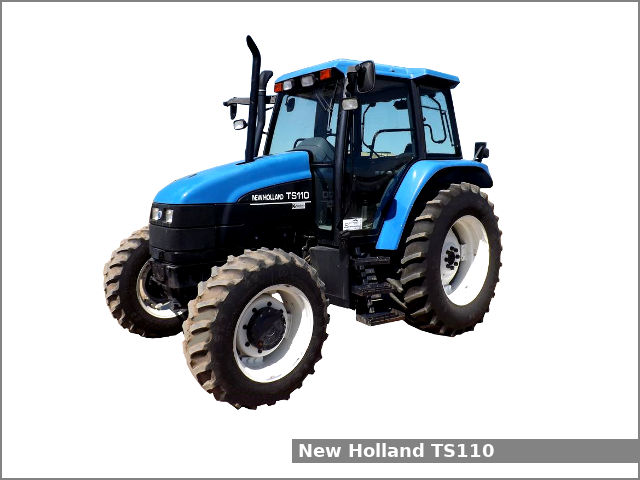

New Holland TS110The New Holland TS110 is a 2WD or4WD utility tractor from the TS series. This tractor was manufactured by New Holland in Basildon, England from 1999 to 2003.

The New Holland TS110 is equipped with a 5.0 L (304.0 cu·in) four-cylinder diesel engine and one of three transmissions: the Synchro Command transmission with 12 forward and 12 reverse gears, the Dual Command transmission with 24 forward and reverse gears or the ElectroShift transmission with 16 forward and 16 reverse gears (24 forward and 24 reverse gears with creeper).

The New Holland TS110 utility tractor used the New Holland Genesis engine. It is a 5.0 L, 4,982 cm2, (304.0 cu·in) four-cylinder turbocharged diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 111.5 PS (82.0 kW; 110.0 HP) at 2,070 rpm of output power.

The New Holland TS110 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post ROPS, or Cab with air-conditioning (optional), and 159.0 liters (42 US gal.; 35 Imp. gal) fuel tank.

New Holland TS110 Specifications

General Specifications
Model New Holland TS110
Length 2WD: 3,810 mm (150.0 in)
4WD: 4,030 mm (158.9 in)
Width 2,010 mm (79.1 in)
Height ROPS: 2,880 mm (113.7 in)
Cab: 2,710 mm (106.7 in)
Wheel base 2WD: 2,330 mm (91.7 in)
4WD: 2,360 mm (93.0 in)
Ground clearance 390 mm (15.4 in)
Weight 2WD with ROPS: 3,315 kg (7,308 lbs)
4WD with ROPS: 3,775 kg (8,320 lbs)
2WD with Cab: 3,950 kg (8,710 lbs)
4WD with Cab: 4,590 kg (10,120 lbs)
Fuel tank capacity 159.0 liters (42 US gal.; 35 Imp. gal)
Battery 12V, CCA: 800A
Cabin type Two-post ROPS or Cab with air-conditioning (optional)
Engine
Engine model New Holland Genesis
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 5.0 L, 4,982 cm2, (304.0 cu·in)
Bore and stroke 112.0 mm X 127.0 mm (4.41 in X 5 in)
Compression ratio 17.5:1
Horsepower 111.5 PS (82.0 kW; 110.0 HP) at 2,070 rpm
Starter Electric
Oil capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Coolant capacity: ROPS: 14.0 L (14.8 US. qt, 12.3 Imp. qt.)
Cab: 15.9 L (16.8 US.qts, 14.0 Imp. qts)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model Synchro Command
Transmission type
Gears 12 forward and 12 reverse
Speed Forward: 37.7 kmh (23.4 mph) Reverse: (0 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Transmission model Dual Command
Transmission type
Gears 24 forward and reverse
Speed Forward: 37.7 kmh (23.4 mph) Reverse: (0 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Transmission model ElectroShift
Transmission type
Gears 16 forward and 16 reverse
Transmission oil capacity 60.6 L (16 US. gal, 13.3 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Caterogy II
Control type
Lift capacity (at 610 mm / 24 in) 1,905 kg (4,200 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1,000 rpm
Hydraulic system
Hydraulic type Open center or closed center (optional)
Pressure Open center: 2700 psi [186.2 bar]
Closed center: 2500 psi (172.4 bar)
Valves 2 to 4
Pump flow 9.3 gpm (35.2 lpm)
Steering flow 9.1 gpm (34.4 lpm)
17.4 gpm (65.9 lpm)
20.0 gpm (75.7 lpm)
