New Holland TS115

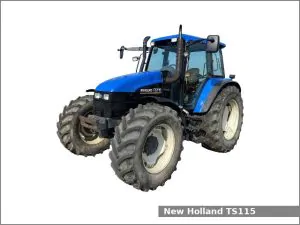

New Holland TS115The New Holland TS115 is a 4WD utility tractor from the TS series. This tractor was manufactured by New Holland in Basildon, England from 1998 to 2000. The New Holland TS115 is equipped with a 7.5 L (456.0 cu·in) six-cylinder diesel engine and one of three transmission variants.

The NH TS115 utility tractor used the New Holland engine. It is a 7.5 L, 7,472 cm2, (456.0 cu·in) six-cylinder natural aspirated diesel engine with 112.0 mm (4.41 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 101.5 PS (74.6 kW; 100.0 HP) at 2,070 rpm of output power.

The New Holland TS115 is equipped with power steering, cab (standard) and 198.7 liters (52.5 US gal.; 43.7 Imp. gal) fuel tank.

New Holland TS115 Specifications

General Specifications
Model New Holland TS115
Length 4,360 mm (171.7 in)
Width 2,010 mm (79.1 in)
Height (cab) 2,710 mm (106.7 in)
Wheel base 2,620 mm (103.1 in)
Ground clearance (front axle) 440 mm (17.3 in)
Weight 4,740 kg (10,450 lbs)
Fuel tank capacity 198.7 liters (52.5 US gal.; 43.7 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine
Engine model New Holland
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 7.5 L, 7,472 cm2, (456.0 cu·in)
Bore and stroke 112.0 mm X 127.0 mm (4.41 in X 5 in)
Compression ratio 17.5:1
Horsepower 101.5 PS (74.6 kW; 100.0 HP) at 2,070 rpm
Starter Electric
Oil capacity: 20.8 L (22 US. qt, 18.3 Imp. qt.)
Coolant capacity: 21.6 L (22.8 US. qt, 19 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission model Synchro Command
Transmission type
Gears 12 forward and 12 reverse
Speed Forward: 37.7 kmh (23.4 mph) Reverse: kmh (0 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Transmission model Dual Command
Transmission type
Gears 24 forward and 24 reverse
Speed Forward: 37.7 kmh (23.4 mph) Reverse: kmh (0 mph)
Transmission oil capacity 56.8 L (15 US. gal, 12.5 Imp. gal.)
Transmission model ElectroShift
Transmission type
Gears 16 forward and 16 reverse
Transmission oil capacity 60.6 L (16 US. gal, 13.3 Imp. gal.)
Tires
Front tires Ag: 13.6-24
Rear tires Ag: 16.9-34
Three-Point Hitch
Category II
Control type
Lift capacity (at 610 mm/24 in) 1,905 kg (4,200 lbs)
Assist ram: 2,820 kg (6,210 lbs)
Two assist rams: 3,737 kg (8,240 lbs)
Two rams, electric draft control: 3,900 kg (8,598 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open or closed center (optional)
Pressure 2500 psi (172.4 bar)
Open center: 2700 psi (186.2 bar)
Valves 2 to 4
Pump flow 9.3 gpm (35.2 lpm)
Optional pump: 17.4 gpm (65.9 lpm)
Closed center: 20.0 gpm (75.7 lpm)
