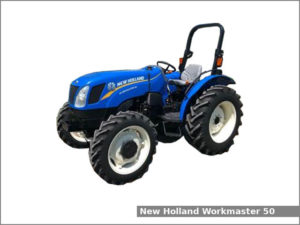

New Holland Workmaster 50The New Holland Workmaster 50 is a 2WD or 4WD utility tractor from the Workmaster series. This tractor has been manufactured by New Holland (a part of CNH) since 2015. The New Holland Workmaster 50 is equipped with a 2.2 L (136.0 cu·in) three-cylinder diesel engine and a synchronized shuttle transmission with 8 forward and 8 reverse gears.

The New Holland Workmaster 50 utility tractor used the FPT R753 engine. It is a 2.2 L, 2,228 cm2, (136.0 cu·in) three-cylinder turbocharged diesel engine with 94.0 mm (3.7 in) of the cylinder bore and 107.0 mm (4.21 in) of the piston stroke. This engine produced 53.7 PS (39.5 kW; 53.0 HP) at 2,600 rpm of output power.

The New Holland Workmaster 50 is equipped with power steering, wet disc type brakes, two-post folding ROPS, and 52.0 liters (13.7 US gal.; 11.4 Imp. gal) fuel tank.

Following attachments are available for the New Holland Workmaster 50 utility tractor:

  • New Holland 611TL loader
  • New Holland 616TL loader
  • New Holland 621TL loader
  • New Holland 626TL loader
  • New Holland 935GHB backhoe

New Holland Workmaster 50 Specifications

General Specifications
ModelNew Holland Workmaster 50
Length 2WD: 3,280 mm (129.1 in)
4WD: 3,400 mm (134.0 in)
Width1,960 mm (77.2 in)
Height (PORS)2,470 mm (97.2 in)
Wheel base 2WD: 2,440 mm (244.0 in)
4WD: 2,470 mm (247.0 in)
Weight 2WD: 2,015 kg (4,440 lbs)
4WD: 2,295 kg (5,060 lbs)
Fuel tank capacity52.0 liters (13.7 US gal.; 11.4 Imp. gal)
Battery12V
Cabin typeTwo-post folding ROPS
Engine
Engine modelFPT R753
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.2 L, 2,228 cm2, (136.0 cu·in)
Bore and stroke94.0 mm X 107.0 mm (3.7 in X 4.21 in)
Horsepower53.7 PS (39.5 kW; 53.0 HP) at 2,600 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesWet disc type
Transmission model
Transmission typeSynchronized shuttle
Gears8 forward and 8 reverse
Tires
Front tiresAg: 7.5×16 (2WD), 8.3×24 (4WD)
Rear tiresAg: 13.6×28
Three-Point Hitch
CaterogyII/I
Control typePosition and draft control
Lift capacity (at ends)1,500 kg (3,310 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with mechanical clutch
Rear PTO speed540, 540/540E rpm
Hydraulic system
Hydraulic typeOpen center
Valves1 or 2
Pump flow12.0 gpm (45.4 lpm)
Steering flow5.5 gpm (20.8 lpm)
Total flow17.5 gpm (66.2 lpm)
