New Holland 3415

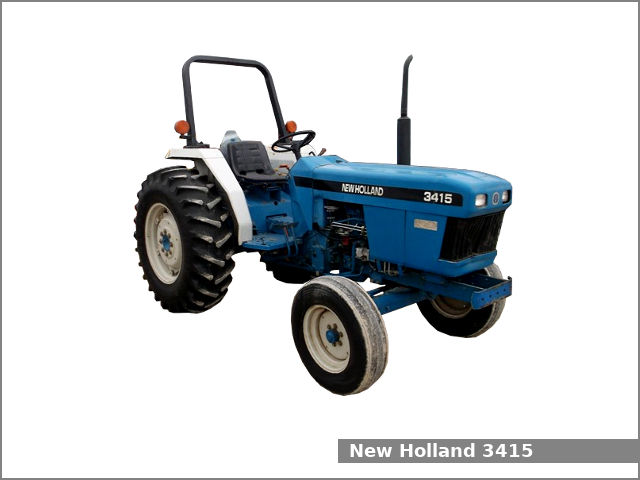

New Holland 3415The New Holland 3415 is a 2WD compact utility tractor manufactured by the Shibaura for New Holland in Japan from 1993 to 2003. The New Holland 3415 is equipped with 2.2 L four-cylinder diesel engine and transmission with 12 forward and 4 reverse gears

The New Holland 3415 utility tractor used 2.2 L, 2,212 cm2, (135 cu·in) four-cylinder Shibaura N844 diesel engine with 84.0 mm (3.31 in) of cylinder bore and 100.0 mm (3.94 in) of piston stroke. The compression ratio rating is 22.5:1. This engine produced 44.6 PS (32.8 kW; 44 HP) of maximum output power.

The New Holland 3415 is equipped with hydrostatic power steering, two-post ROPS and 42.0 liters (11.1 US gal.; 9.2 Imp. gal) fuel tank.

New Holland 3415 Specifications

General Specifications
Model New Holland 3415
Wheel base 1,890 mm (74.4 in)
Weight 1,860 kg (4,100 lbs)
Fuel tank capacity 42.0 liters (11.1 US gal.; 9.2 Imp. gal)
Battery 12V
Cabin type Two-post ROPS.
Engine model Shibaura N844L
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 2.2 L, 2,212 cm2, (135 cu·in)
Bore and stroke 84.0 mm X 100.0 mm (3.31 in X 3.94 in)
Compression ratio 22.5:1
Horsepower 44.6 PS (32.8 kW; 44 HP)
Starter Electric
Oil type 10W-30
Oil capacity: 10.6 L (11.2 US. qt, 9.33 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Hydrostatic power
Transmission model
Transmission type
Gears 12 forward and 4 reverse
Front tires Ag: 6.00-16
Rear tires Ag: 13.6-28
Three-Point Hitch
Caterogy I
Control type
Lift capacity 1575 kg (3473 lbs)
PTO (Power take-off shaft)
Rear PTO type Live
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 6.5 gpm (24.6 lpm)
