New Holland T5050

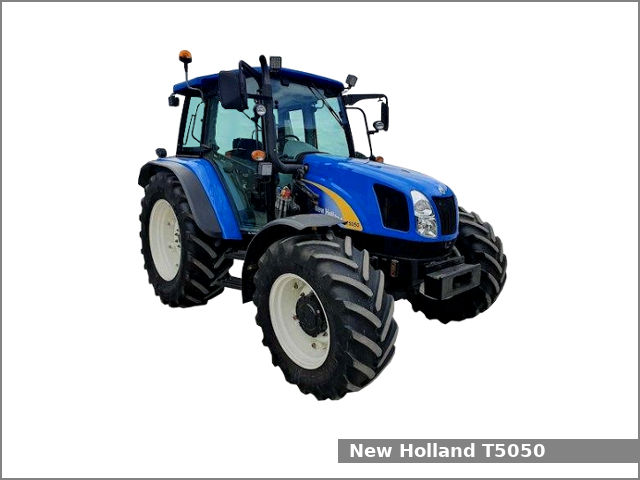

New Holland T5050The New Holland T5050 is a 2WD or 4WD utility tractor from the T5000 series. This tractor was manufactured by New Holland in Jesi, Italy from 2008 to 2013. The New Holland T5050 is equipped with 4.5 L four-cylinder diesel engine.

The New Holland T5050 utility tractor used the New Holland engine. It is a 4.5 L, 4,490 cm2, (274.0 cu·in) four-cylinder turbocharged intercooled diesel engine. This engine produced 96.3 PS (70.8 kW; 95.0 HP) at 2,300 rpm of maximum output power.

The New Holland T5050 is equipped with hydrostatic power steering, hydraulic wet disc brakes, rear mechanical or front and rear electrohydraulic (optional) differential lock, flat deck platform with ROPS or cab with heat and air-conditioning (optional) and 127 liters (33.5 US gal.; 27.9 Imp. gal) fuel tank.

Following attachments are available for New Holland T5050 utility tractor:

  • New Holland 820 loader
  • New Holland 830 loader

New Holland T5050 Specifications

General Specifications
Model New Holland T5050
Length 2,340 mm (92.1 in)
Width
Height 2,560 mm (100.8 in)
Wheel base 2,340 mm (92.1 in)
Weight
Fuel tank capacity 127 liters (33.5 US gal.; 27.9 Imp. gal)
Battery 12V CCA: 960A
Cabin type Flat deck platform with ROPS. Cab with heat and air-conditioning (optional)
Engine
Engine model New Holland
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,490 cm2 (274.0 cu·in)
Bore and stroke
Horsepower 96.3 PS (70.8 kW; 95.0 HP) at 2,300 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Differential lock Mechanical rear or electrohydraulic front and rear (optional)
Transmission model
Transmission type Mechanical shuttle
Gears 12 forward and 12 reverse
Transmission model
Transmission type Mechanical shuttle
Gears 20 forward and 12 reverse
Transmission model
Transmission type Power shuttle
Gears 12 forward and 12 reverse
Transmission model Dual Command
Transmission type Power shuttle
Gears 24 forward and 24 reverse
Tires
Front tires
Rear tires
Three-Point Hitch
Caterogy II
Control type Mechanical lower-link draft sensing
Lift capacity 2,480 kg (5,468 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with mechanical or electrohydraulic clutch
Rear PTO spped 540/1,000 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,880 psi (199 bar)
Valves 2 to 3
Pump flow 16.1 gpm (60.9 lpm)
Steering flow 10.4 gpm (39.4 lpm)
