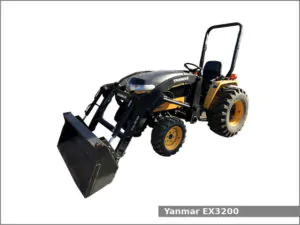

The Yanmar EX3200 is a 4WD compact utility tractor from the EX series. This tractor was manufactured by Yanmar from 2012 to 2016. The Yanmar EX3200 is equipped with a 1.6 L (100.2 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (3-range) forward and reverse gears.
The Yanmar EX3200 compact utility tractor used the Yanmar 3TNV88 engine. It is a 1.6 L, 1,642 cm2, (100.2 cu·in) three-cylinder natural aspirated diesel engine with 88.0 mm (3.46 in) of the cylinder bore and 90.0 mm (3.54 in) of the piston stroke. This engine produced 32.0 PS (23.5 kW; 31.5 HP) at 2,600 rpm of gross output power.
The Yanmar EX3200 is equipped with power steering, wet disc brakes, two-post foldable ROPS and 24.0 liters (6.3 US gal.; 5.3 Imp. gal) fuel tank.
Following attachments are available for the Yanmar EX3200 compact utility tractor:
- Yanmar CL300 loader
- Yanmar CB75 backhoe
Yanmar EX3200 Specifications
| General Specifications | |
| Model | Yanmar EX3200 |
| Length | 2,780 mm (109.4 in) |
| Width | 1,500 mm (59.1 in) |
| Height | 2,230 mm (87.8 in) |
| Wheel base | 1,550 mm (61 in) |
| Ground clearance | 255 mm (10 in) |
| Weight | 1,135 kg (2,502 lbs) |
| Fuel tank capacity | 24.0 liters (6.3 US gal.; 5.3 Imp. gal) |
| Battery | 12V, CCA 540A |
| Cabin type | Two-post foldable ROPS |
| Engine | |
| Engine model | Yanmar 3TNV88 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.6 L, 1,642 cm2, (100.2 cu·in) |
| Bore and stroke | 88.0 mm X 90.0 mm (3.46 in X 3.54 in) |
| Horsepower | 32.0 PS (23.5 kW; 31.5 HP) at 2,600 rpm |
| Starter | Electric |
| Oil capacity: | 4.0 L (4.2 US. qt, 3.5 Imp. qt.) |
| Coolant capacity: | 4.5 L (4.8 US. qt, 4 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×4 MFWD 4WD |
| Steering type | Power |
| Brakes | Wet disc |
| Transmission model | – |
| Transmission type | Hydrostatic |
| Gears | Infinite (3-range) forward and reverse |
| Speed | Forward: 21.3 kmh (13.2 mph) Reverse: 21.3 (13.2 mph) |
| Transmission oil capacity | 20.3 L (5.4 US. gal, 4.5 Imp. gal.) |
| Tires | |
| Front tires |
Ag: 7-14 Lawn/turf: 25×8.50-14 Industrial: 25×8.50-14 |
| Rear tires |
Ag: 11.2-24 Lawn/turf: 13.6-16 Industrial: 15-19.5 |
| Three-Point Hitch | |
| Caterogy | I |
| Control type | Position control |
| Lift capacity (at ends) | 568 kg (1,252 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Continuous Live |
| Middle PTO speed | 2,100 rpm |
| Rear PTO type | Continuous Live with Overrunning Clutch |
| Rear PTO speed | 540 rpm |
| Hydraulic system | |
| Hydraulic type | Open center |
| Pressure | 2030 psi (140 bar) |
| Pump flow | 5.6 gpm (21.2 lpm) |
| Steering flow | 4.3 gpm (16.3 lpm) |
| Total flow | 9.9 gpm (37.5 lpm) |
