Yanmar Sc2400

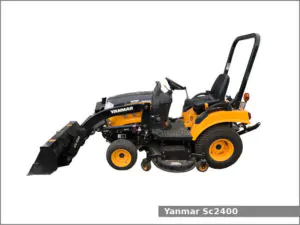

Yanmar Sc2400The Yanmar Sc2400 is a 4WD sub-compact utility tractor from the SC series. This tractor has been manufactured by Yanmar since 2012. The Yanmar Sc2400 is equipped with a 0.9 L (55.1 cu·in) three-cylinder diesel engine and a hydrostatic transmission with infinite (2-range) forward and reverse gears.

The Yanmar Sc2400 sub-compact utility tractor used the Yanmar engine. It is a 0.9 L, 903 cm2, (55.1 cu·in) three-cylinder natural aspirated diesel engine with 72.0 mm (2.83 in) of the cylinder bore and 74.0 mm (2.91 in) of the piston stroke. This engine produced 24.3 PS (17.9 kW; 24.0 HP) at 2,400 rpm of output power.

The Yanmar Sc2400 is equipped with power steering, wet disc brakes, ROPS (standard) or steel cab (optional), and 22.0 liters (5.8 US gal.; 4.8 Imp. gal) fuel tank.

Following attachments are available for the Yanmar Sc2400 sub-compact utility tractor:

  • Mid-mount Yanmar MM60RSe: 1,520 mm (60 in) mower deck
  • Yanmar CL100 loader

Yanmar Sc2400 Specifications

General Specifications
Model Yanmar Sc2400
Length 2,420 mm (95.3 in)
Width 1,130 mm (44.5 in)
Height
Wheel base 1,390 mm (54.7 in)
Ground clearance 190 mm (7.5 in)
Weight 580 kg (1,279 lbs)
Fuel tank capacity 22.0 liters (5.8 US gal.; 4.8 Imp. gal)
Battery 12V
Cabin type ROPS (standard) or steel cab (optional)
Engine
Engine model Yanmar
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 0.9 L, 903 cm2, (55.1 cu·in)
Bore and stroke 72.0 mm X 74.0 mm (2.83 in X 2.91 in)
Horsepower 24.3 PS (17.9 kW; 24.0 HP) at 2,400 rpm
Starter Electric
Oil capacity: 2.4 L (2.5 US. qt, 2.1 Imp. qt.)
Coolant capacity: 3.2 L (3.4 US. qt, 2.8 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Hydrostatic
Gears Infinite (2-range) forward and reverse
Speed Forward: 14.5 kmh (9 mph) Reverse: 9.0 kmh (5.6 mph)
Transmission oil capacity 7.6 L (2 US. gal, 1.7 Imp. gal.)
Tires
Front tires Ag: 18×8.5-10
Rear tires Ag: 26×12.0-12
Three-Point Hitch
Category I Limited
Control type Position control
Lift capacity (at 610 mm/24 in) 300 kg (662 lbs)
PTO (Power take-off shaft)
Middle PTO type Independent
Middle PTO speed 2,100 rpm
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pump flow 3.5 gpm (13.2 lpm)
Steering flow 3.4 gpm (12.9 lpm)
Total flow 6.9 gpm (26.1 lpm)
