CaseIH 5240 Maxxum

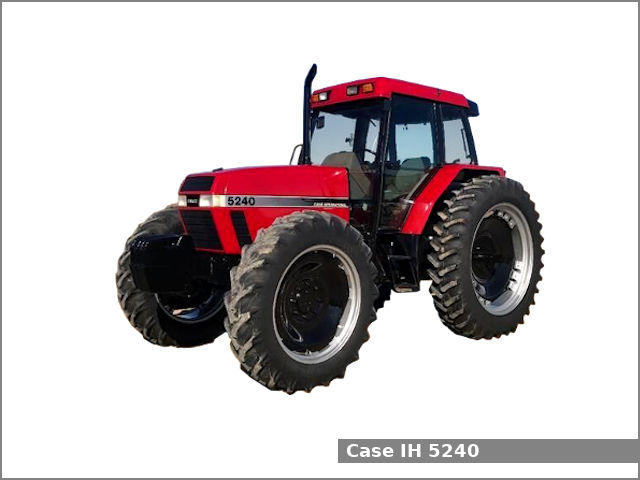

CaseIH 5240 MaxxumThe CaseIH 5240 Maxxum is a 2WD or 4WD tractor from the Maxxum series. This tractor was manufactured by CaseIH from 1992 to 1997. The CaseIH 5240 Maxxum is equipped with a 5.9 L (359.0 cu·in) six-cylinder diesel engine and one of two transmissions: a synchronized transmission with 16 forward and 12 reverse gears or a partial power shift transmission with 16 forward and 12 reverse gears.

The Case IH 5240 Maxxum tractor used the CDC engine. It is a 5.9 L, 5,883 cm2, (359.0 cu·in) six-cylinder turbocharged diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. This engine produced 101.5 PS (74.6 kW; 100.0 HP) at 2,200 rpm of PTO output power.

The Case IH 5240 Maxxum is equipped with power steering, cab, and 135.1 liters (35.7 US gal.; 29.7 Imp. gal) fuel tank.

CaseIH 5240 Maxxum Specifications

General Specifications
Model Case IH 5240 Maxxum
Length
Width
Height
Wheel base
Weight 4,590 kg (10,119 lbs)
Fuel tank capacity 135.1 liters (35.7 US gal.; 29.7 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine
Engine model CDC
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 5.9 L, 5,883 cm2, (359.0 cu·in)
Bore and stroke 102.0 mm X 120.0 mm (4.02 in X 4.72 in)
Horsepower 101.5 PS (74.6 kW; 100.0 HP) at 2,200 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes
Transmission model
Transmission type Synchronized
Gears 16 forward and 12 reverse
Transmission model
Transmission type Partial power shift
Gears 16 forward and 12 reverse
Tires
Front tires Ag: 10.00-16
Rear tires Ag: 18.4-38
Three-Point Hitch
Category II
Control type
Lift capacity (at ends) 3,490 kg (7,695 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Closed center
Valves 1
Pump flow 20.0 gpm (75.7 lpm)
