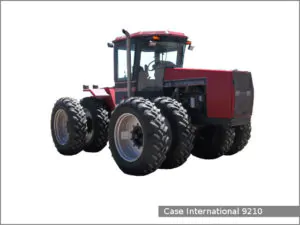

The Case IH 9210 is a four-wheel drive (4WD) tractor from 9200 series, manufactured by Case IH on the factory in Fargo (North Dakota, USA) since 1990 to 1995. The Case IH 9210 tractor is equipped with CDC diesel engine with 8.3 L (504.5 cu in) of displacement and full powershift transmission with 12 forward and 3 reverse gears.
Engine. The Case International 9210 tractor used a six-cylinder liquid-cooled turbocharged diesel engine from the Consolidated Diesel Company (CDC) with 8.3 L (504.5 cu-in) of displacement and 114.0 mm (4.5 in) of the cylinder bore and 135.0 mm (5.3 in) of the piston stroke. Compression ratio rating is 16.5:1. The engine produced 202.6 PS (149 KW; 200.0 HP) at 2,100 rpm of horsepower and 847.5 Nm (86.5 kg·m; 625.0 lbf·ft) at 1,500 rpm of peak torque.
Transmission. The Case IH 9210 tractor is equipped with full powershift transmission operated with two right-hand levers. The transmission has 12 forward (3.5-29.4 km/h, 2.2-18.2 mph) and 3 reverse (4.5-14.5 km/h, 2.8-9.0 mph) gears.
Cab. The tractor used the standard cab with the air-conditioning system. Deluxe cab available as an option. It has side and rear window wipers and internal storage compartments.
Dimensions. The tractor has a length of 6,130 mm (241.6 in.), a width of 3,030 mm (119.5 in.), and a height of 3,290 mm (129.6 in.), with a wheelbase of 3,050 mm (120.4 in.) and a weight of 7,710 kg (17,000 lb.). The front and rear tires are both 18.4-38 in size.
Hydraulic system. The hydraulic lift has a Category III three-point linkage and a maximum lifting capacity of 5,783 kg (12,750 lb.) at the link end. It also has a rear, independent type power take-off shaft (PTO) with a speed of 1,000 rpm. The hydraulic system is a closed center, load sensing, pressure compensating type with a hydraulic fluid capacity of 68.0 L (18 gal.), a pressure of 172 bar (2,500 psi), and four valves. The total flow rate is 28 gpm (106.0 lpm).
General Specifications
| General Specifications | |
| Model | Case IH 9210 |
| Tractor type | Four-wheel drive (4WD) tractor |
| Production years | 1990-1995 |
| Manufacturer | Case IH |
| Factory | Fargo, North Dakota, USA |
| Dimensions and weight | |
| Length | 6,130 mm (241.6 in) |
| Width | 3,030 mm (119.5 in) |
| Height | 3,290 mm (129.6 in) |
| Wheelbase | 3,050 mm (120.4 in) |
| Weight | 7,710 kg (17,000 lb) |
| Fluid capacity | |
| Fuel tank capacity | 435 liters (115.0 US gal, 95.7 Imp. gal) |
| Oil capacity | 20.8 liters (22.0 US.qts, 18.3 Imp. qts) |
| Coolant capacity | 33.2 liters (35.0 US.qts, 29.2 Imp. qts) |
| Hydraulic fluid capacity: | 68.0 liters (18.0 US gal, 15.0 Imp. gal) |
| Electrical system | |
| Ground | Negative |
| Battery | 12V |
| Cabin type | |
| Cabin type | Standard: Cab with air-conditioning Optional: Deluxe cab adds side and rear window wipers plus internal storage compartments |
Engine
| Engine | |
| Engine model | CDC 6TA-830 |
| Fuel | Diesel |
| Displacement | 8.3 L (504.5 cu.in.) |
| Bore | 114.0 mm (4.5 in) |
| Stroke | 135.0 mm (5.3 in) |
| Compression ratio rating | 16.5:1 |
| Power output | 202.6 PS (149 KW; 200.0 HP) at 2,100 rpm |
| Torque | 847.5 Nm (86.5 kg·m; 625.0 lbf·ft) at 1,500 rpm |
| Starter type | Electric starter |
| Oil type | SAE 10W-30 |
| Oil capacity | 20.8 liters (22.0 US.qts, 18.3 Imp. qts) |
| Coolant capacity | 33.2 liters (35.0 US.qts, 29.2 Imp. qts) |
Transmission and chassis
| Transmission and chassis | |
| Chassis | 4×4 (4WD) |
| Steering | Hydrostatic with articulation and front-axle steering |
| Transmission type | Full power shift transmission |
| Gears | 12 forward and 3 reverse gears |
| Ground speed | Forward: 3.5-29.4 km/h (2.2-18.2 mph) Reverse: 4.5-14.5 km/h (2.8-9.0 mph) |
Tires
| Tires size | |
| Front tires | 18.4-38 |
| Rear tires | 18.4-38 |
PTO and 3-point linkage
| PTO (Power take-off shaft) | |
| PTO type: | Rear, independent type (option) |
| PTO speed: | 1,000 rpm |
| Hydraulic lift | |
| 3-point linkage | Category III (optional) |
| Pump capacity | – |
| Control system | Option |
| No. of remote valves | – |
| Max lifting capacity (at link end) | 5,783 kg (12,750 lbs) |
Hydraulic system
| Hydraulic system | |
| Type | Closed center, load sensing, pressure compensating |
| Hydraulic luid capacity | 68.0 liters (18.0 US gal, 15.0 Imp. gal) |
| Pressure | 172 bar (2,500 psi) |
| Valves | 4 |
| Total flow | 28.0 gpm (106.0 lpm) |
Serial numbers
| Serial numbers (Under the left-side steps on front fender) | |
| 1990 | JCB0004600 |
| 1991 | JCB0026501 |
| 1992 | JCB0028400 |
| 1993 | JCB0030500 |
| 1994 | JEE0031773 |
| 1995 | JEE0032808 |
