CaseIH 5140 Maxxum

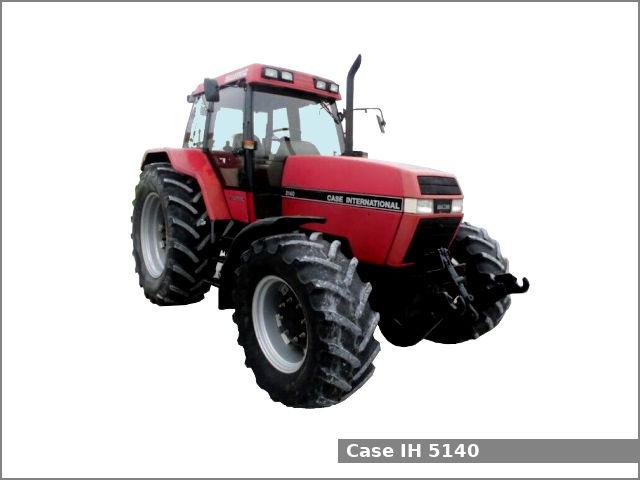

CaseIH 5140 MaxxumThe CaseIH 5140 Maxxum is a 2WD or 4WD farm tractor from the Maxxum series. This tractor was manufactured by CaseIH in Neuss, Germany from 1990 to 1997. The CaseIH 5140 Maxxum is equipped with a 5.9 L (359.0 cu·in) six-cylinder diesel engine and one of two transmissions: a power shuttle transmission with 16 forward and 12 reverse gears or a four-speed power shift transmission with 16 forward and 12 reverse gears (24 forward and 20 reverse with creeper).

The CaseIH 5140 farm tractor used the CDC 6T-590 engine. It is a 5.9 L, 5,883 cm2, (359.0 cu·in) six-cylinder turbocharged diesel engine with 102.0 mm (4.02 in) of the cylinder bore and 120.0 mm (4.72 in) of the piston stroke. The compression ratio rating is 17.5:1. This engine produced 118.6 PS (87.2 kW; 117.0 HP) at 2,200 rpm of output power.

The CaseIH 5140 Maxxum is equipped with power steering, wet disc brakes, two-post ROPS or Cab (optional), and 170.0 liters (44.9 US gal.; 37.4 Imp. gal) fuel tank.

CaseIH 5140 Maxxum Specifications

General Specifications
ModelCaseIH 5140 Maxxum
Length4,450 mm (175.2 in)
Width2,200 mm (86.6 in)
Height Cab: 2,730 mm (107.5 in)
Wheel base 2WD: 2,630 mm (103.5 in)
4WD: 2,580 mm (101.6 in)
Ground clearance460 mm (18.1 in)
Weight (shipping) 2WD ROPS: 4,450 kg (9,811 lbs)
4WD Cab: 4,910 kg (10,825 lbs)
Fuel tank capacity170.0 liters (44.9 US gal.; 37.4 Imp. gal)
Battery12V, 105Ah
Cabin typeTwo-post ROPS or Cab (optional)
Engine modelCDC 6T-590
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement5.9 L, 5,883 cm2, (359.0 cu·in)
Bore and stroke102.0 mm X 120.0 mm (4.02 in X 4.72 in)
Compression ratio17.5:1
Horsepower118.6 PS (87.2 kW; 116.9 HP) at 2,200 rpm
Torque455.1 N·m (46.4 kg·m, 335.4 ft·lb) at 1,200 rpm
Oil capacity:15.0 L (15.9 US. qt, 13.2 Imp. qt.)
Coolant capacity:20.8 L (22 US. qt, 18.3 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesWet disc
Final drivePlanetary
Transmission model
Transmission typePower shuttle
Gears16 forward and 12 reverse
Transmission model
Transmission typeFour-speed power shift
Gears16 forward and 12 reverse
Speed Forward: 40.0 kmh (24.9 mph) Reverse: 22.0 kmh (13.7 mph)
Front tires Ag: 16.9R24
Rear tires Ag: 18.4R38
Three-Point Hitch
Control typeElectro-hydraulic lower-link draft sensing
Lift capacity (at 610 mm/24 in)3,492 kg (7,700 lbs)
Front Hitch
Lift capacity (at 610 mm/24 in)2,358 kg (5,200 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with hydraulic wet disc clutch
Rear PTO speed540/1,000 rpm
Hydraulic system
Hydraulic type
Hydraulic capacity76.1 L (20.1 US. gal, 16.7 Imp. gal.)
Pressure2756 psi (190 bar)
Pump flow20.7 gpm (78.4 lpm)
