CaseIH 2394

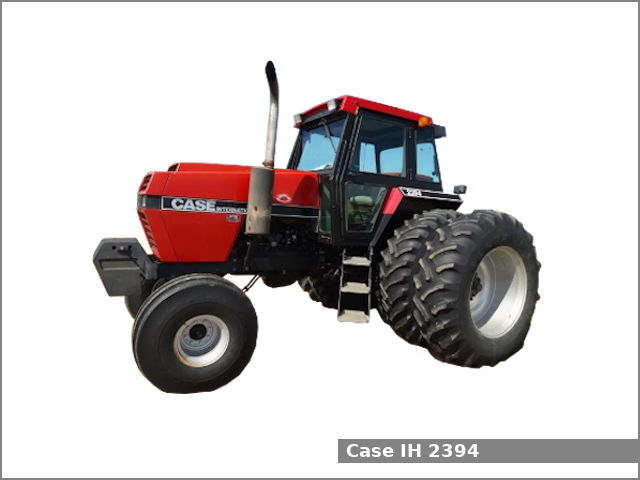

CaseIH 2394The CaseIH 2394 is a 2WD row-crop tractor from the 94 series. This tractor was manufactured by CaseIH from 1984 to 1988. The CaseIH 2394 is equipped with a 8.3 L (504.0 cu·in) six-cylinder diesel engine and one of two transmissions: a three-speed power shift transmission with 12 forward and 3 reverse gears or a four-speed power shift transmission with 24 forward and 3 reverse gears.

The Case IH 2394 row-crop tractor used the Case engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 199.8 PS (146.9 kW; 197.0 HP) at 2,100 rpm of output power.

The Case IH 2394 is equipped with power steering, wet disc brakes, Silent Guardian cab with air-conditioning, and 321.7 liters (85 US gal.; 70.8 Imp. gal) fuel tank.

CaseIH 2394 Specifications

General Specifications
ModelCaseIH 2394
Width2,430 mm (95.7 in)
Wheel base2,990 mm (117.7 in)
Weight (operating)7,365 kg (16,237 lbs)
Fuel tank capacity321.7 liters (85 US gal.; 70.8 Imp. gal)
Cabin typeSilent Guardian cab with air-conditioning
Engine modelCase
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement8.3 L, 8,259 cm2, (504.0 cu·in)
Bore and stroke117.0 mm X 127.0 mm (4.61 in X 5 in)
Horsepower199.8 PS (146.9 kW; 197 HP) at 2,100 rpm
Oil capacity:28.4 L (30 US. qt, 25 Imp. qt.)
Coolant capacity:41.6 L (44 US. qt, 36.6 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typePower
BrakesWet disc
Transmission model
Transmission typeThree-speed power shift
Gears12 forward and 3 reverse
Speed Forward: 31.1 kmh (19.3 mph) Reverse: 10.5 (6.5 mph)
Transmission oil capacity121.0 L (32 US. gal, 26.6 Imp. gal.)
Transmission model
Transmission typeFour-speed power shift with hydraulic wet disc clutch
Gears24 forward and 3 reverse
Speed Forward: 31.1 kmh (19.3 mph) Reverse: 10.5 (6.5 mph)
Transmission oil capacity121.0 L (32 US. gal, 26.6 Imp. gal.)
Front tires Ag: 11.00×16
Rear tires Ag: 18.4×38
Three-Point Hitch
Control type
Lift capacity (at 610 mm/24 in)3,515 kg (7,750 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with hydraulic clutch
Rear PTO speed1,000 rpm
Hydraulic system
Hydraulic typeClosed center
Hydraulic capacity121.1 L (32 US. gal, 26.6 Imp. gal.)
Pressure2250 psi (155.1 bar)
Valves2 to 4
Pump flow27.0 gpm (102.2 lpm)
Steering flow8.0 gpm (30.3 lpm)
