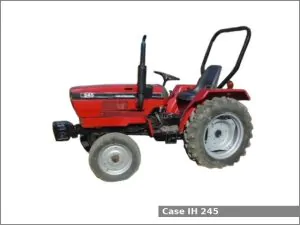

The CaseIH 245 is a 2WD/4WD compact utility tractor from the 200 series. This tractor was manufactured by Mitsubishi for distributor CaseIH from 1986 to 1990. The CaseIH 245 is equipped with a 1.0 L (59.7 cu·in) three-cylinder diesel engine and one of two transmissions: a constant mesh transmission with 9 forward and 3 reverse gears or a synchromesh transmission with 9 forward and 3 reverse gears.
The Case IH 245 compact utility tractor used the Mitsubishi K3D engine. It is a 1.0 L, 978 cm2, (59.7 cu·in) three-cylinder natural aspirated diesel engine with 73.0 mm (2.87 in) of the cylinder bore and 78.0 mm (3.07 in) of the piston stroke. The compression ratio rating is 23.0:1. This engine produced 21.4 PS (15.7 kW; 21.0 HP) at 2,700 rpm of output power.
The Case International 245 is equipped with manual or power (optional) steering, mechanical drum brakes, two-post folding ROPS and 20.8 liters (5.5 US gal.; 4.6 Imp. gal) fuel tank.
CaseIH 245 Specifications
| General Specifications | |
| Model | CaseIH 245 |
| Length | 2,830 mm (111.4 in) |
| Width | 2WD: 1,100 mm (43.3 in) 4WD: 1,170 mm (46.1 in) |
| Height (steering wheel) | 2WD: 1,360 mm (53.5 in) 4WD: 1,370 mm (53.9 in) |
| Wheel base | 1,670 mm (65.7 in) |
| Ground clearance (front axle) | 2WD: 340 mm (13.4 in) 4WD: 270 mm (10.6 in) |
| Weight (shipping) | 866 kg (1,909 lbs) |
| Fuel tank capacity | 20.8 liters (5.5 US gal.; 4.6 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post folding ROPS |
| Engine | |
| Engine model | Mitsubishi K3D |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 3 |
| Fuel type | Diesel |
| Displacement | 1.0 L, 978 cm2, (59.7 cu·in) |
| Bore and stroke | 73.0 mm X 78.0 mm (2.87 in X 3.07 in) |
| Compression ratio | 23.0:1 |
| Horsepower | 21.4 PS (15.7 kW; 21.1 HP) at 2,700 rpm |
| Starter | Electric |
| Oil capacity: | 4.2 L (4.4 US. qt, 3.7 Imp. qt.) |
| Coolant capacity: | 4.9 L (5.2 US. qt, 4.3 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Manual or power (optional) |
| Brakes | Mechanical drum |
| Transmission model | – |
| Transmission type | Constant mesh |
| Gears | 9 forward and 3 reverse |
| Speed | Forward: 18.8 kmh (11.7 mph) Reverse: 12.6 kmh (7.8 mph) |
| Transmission model | – |
| Transmission type | Synchromesh |
| Gears | 9 forward and 3 reverse |
| Speed | Forward: 18.8 kmh (11.7 mph) Reverse: 12.6 kmh (7.8 mph) |
| Tires | |
| Front tires | Ag: 4.00-15 (2WD), 6-14 (4WD) |
| Rear tires | Ag: 9.5-24 |
| Three-Point Hitch | |
| Category | I |
| Control type | – |
| Lift capacity (at ends) | 680 kg (1,500 lbs) |
| PTO (Power take-off shaft) | |
| Middle PTO type | Live |
| Middle PTO speed | 2400 rpm |
| Rear PTO type | Transmission or live (option) |
| Rear PTO speed | 540,1150 rpm |
| Hydraulic system | |
| Hydraulic type | – |
| Hydraulic capacity | 25.0 L (6.6 US. gal, 5.5 Imp. gal.) |
| Valves | 0 or 1 |
| Total flow | 4.5 gpm (17 lpm) |
