CaseIH 2594

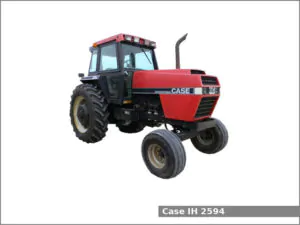

CaseIH 2594The CaseIH 2594 is a 2WD row-crop tractor from the 94 series. This tractor was manufactured by CaseIH from 1984 to 1988. The CaseIH 2594 is equipped with a 8.3 L (504.0 cu·in) six-cylinder diesel engine and one of two transmissions: a three-speed power shift transmission with 12 forward and 3 reverse gears or a four-speed power shift transmission with 24 forward and 3 reverse gears.

The Case IH 2594 row-crop tractor used the Case engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 220 PS (161.8 kW; 217.0 HP) at 2,100 rpm of output power.

The CaseIH 2594 is equipped with power steering, wet disc brakes, Silent Guardian cab with air-conditioning, and 321.7 liters (85 US gal.; 70.8 Imp. gal) fuel tank.

CaseIH 2594 Specifications

General Specifications
Model CaseIH 2594
Length
Width 2,430 mm (95.7 in)
Height
Wheel base 2,990 mm (117.7 in)
Weight (operating) 7,360 kg (16,226 lbs)
Fuel tank capacity 321.7 liters (85 US gal.; 70.8 Imp. gal)
Battery 12V
Cabin type Silent Guardian cab with air-conditioning
Engine
Engine model Case
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.3 L, 8,259 cm2, (504.0 cu·in)
Bore and stroke 117.0 mm X 127.0 mm (4.61 in X 5 in)
Horsepower 220 PS (161.8 kW; 217.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 28.4 L (30 US. qt, 25 Imp. qt.)
Coolant capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Power
Brakes Wet disc
Transmission model
Transmission type Three-speed power shift
Gears 12 forward and 3 reverse
Speed Forward: 33.5 kmh (20.8 mph) Reverse: 11.7 (7.3 mph)
Transmission oil capacity 121.0 L (32 US. gal, 26.6 Imp. gal.)
Transmission model
Transmission type Four-speed power shift
Gears 24 forward and 3 reverse
Speed Forward: 33.5 kmh (20.8 mph) Reverse: 11.7 (7.3 mph)
Transmission oil capacity 121.0 L (32 US. gal, 26.6 Imp. gal.)
Tires
Front tires Ag: 11.00×16
Rear tires Ag: 20.8×38
Three-Point Hitch
Category III/II
Control type
Lift capacity (at 610 mm/24 in) 3,515 kg (7,750 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with hydraulic clutch
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 121.1 L (32 US. gal, 26.6 Imp. gal.)
Pressure 2250 psi (155.1 bar)
Valves 2 to 4
Pump flow 27.0 gpm (102.2 lpm)
Steering flow 8.0 gpm (30.3 lpm)
