CaseIH 3594

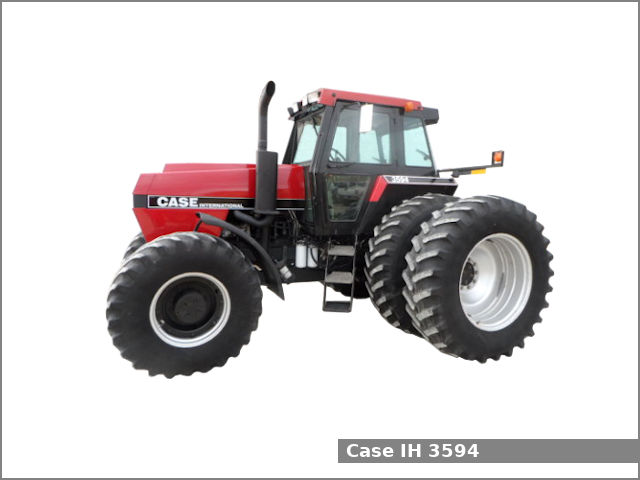

CaseIH 3594The CaseIH 3594 is a 4WD row-crop tractor manufactured by CaseIH in Racine, Wisconsin, USA from 1985 to 1988. The CaseIH 3594 is equipped with a 8.3 L (504.0 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 24 forward and 3 reverse gears or a partial power shift transmission with 12 forward and 3 reverse gears.

The Case IH 3594 row-crop tractor used the Case engine. It is a 8.3 L, 8,259 cm2, (504.0 cu·in) six-cylinder turbocharged diesel engine with 117.0 mm (4.61 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 15.8:1. This engine produced 204.8 PS (150.6 kW; 202.0 HP) at 2,100 rpm of output power.

The Case IH 3594 is equipped with power steering, differential hydraulic wet disc brakes, cab and 321.7 liters (85 US gal.; 70.8 Imp. gal) fuel tank.

CaseIH 3594 Specifications

General Specifications
Model CaseIH 3594
Length 4,880 mm (192.1 in)
Width 1,520 mm (59.8 in)
Height Cab: 3,040 mm (119.7 in)
Wheel base 2,940 mm (115.7 in)
Ground clearance 450 mm (17.7 in)
Weight (operating) 7,980 kg (17,593 lbs)
Fuel tank capacity 321.7 liters (85 US gal.; 70.8 Imp. gal)
Battery 12V
Cabin type Cab (standard)
Engine
Engine model Case
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.3 L, 8,259 cm2, (504.0 cu·in)
Bore and stroke 117.0 mm X 127.0 mm (4.61 in X 5 in)
Compression ratio 15.8:1
Horsepower 204.8 PS (150.6 kW; 202.0 HP) at 2,100 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Differential hydraulic wet disc
Transmission model
Transmission type Partial power shift
Gears 24 forward and 3 reverse
Speed Forward: 33.5 kmh (20.8 mph) Reverse: 11.7 (7.3 mph)
Transmission oil capacity 125.9 L (33.3 US. gal, 27.7 Imp. gal.)
Transmission model
Transmission type Partial power shift
Gears 12 forward and 3 reverse
Speed Forward: 33.5 kmh (20.8 mph) Reverse: 13.5 (8.4 mph)
Transmission oil capacity 125.9 L (33.3 US. gal, 27.7 Imp. gal.)
Tires
Front tires Ag: 16.9-26
Rear tires Ag: 24.5R-32
Three-Point Hitch
Category III
Control type
Lift capacity (at 610 mm/24 in) 3,515 kg (7,750 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type Closed center
Hydraulic capacity 125.9 L (33.3 US. gal, 27.7 Imp. gal.)
Pressure 2250 psi (155.1 bar)
Valves 2 to 4
Pump flow 30.0 gpm (113.6 lpm)
